|2004 to 2008|
|Production||February 2003–December 2007|
|Designer||Eric Stoddard, Andrew Dyson|
|Body and chassis|
|Body style||2-door convertible|
3.2 L M112 E32 (195 cu in) V63.2 L AMG M112 C32 (195 cu in) V6
|Transmission||5-speed (Mercedes 5G-Tronic)automatic|
6-speed Chrysler NSG370 manual
|Wheelbase||94.5 in (2,400 mm)|
|Length||159.8 in (4,059 mm)|
|Width||69.5 in (1,765 mm)|
|Height||51.5 in (1,308 mm) (coupe)|
51.8 in (1,316 mm) (roadster)

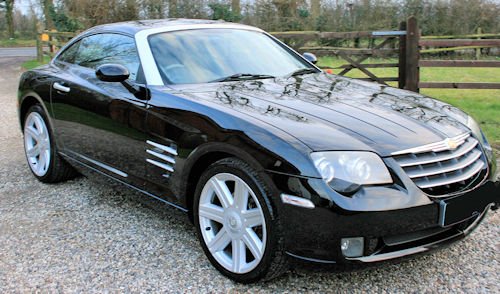

The Chrysler Crossfire is a rear-wheel drive, 2-door sports car sold by Chrysler and built by Karmann of Germany for model years 2004-2008.
Developed during the union of Daimler and Chrysler, the two-seater is based on the R170 platform and shares 80% of its components with the R170 Mercedes-Benz SLK320. The 2nd generation Mercedes-Benz SLK was built on a new R171 platform starting in the 2005 model year. The R170 platform was essentially handed down to Chrysler for use in building the Crossfire. Having initially arrived in 2001 as a concept car styled by Eric Stoddard, the Chrysler was further refined by Andrew Dyson before production began in 2003 for 2004 model year sales.

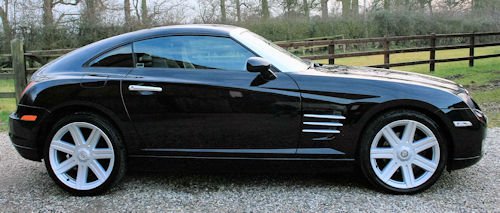

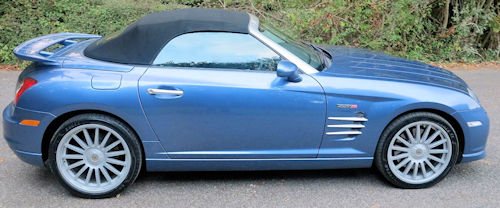

The name "Crossfire" refers to the two character lines that run from front to rear along the body sides — crossing each other midway through the door panel. Conceived during the period of Chrysler's ownership by Daimler-Benz, the name also refers to the collaboration of the two companies.

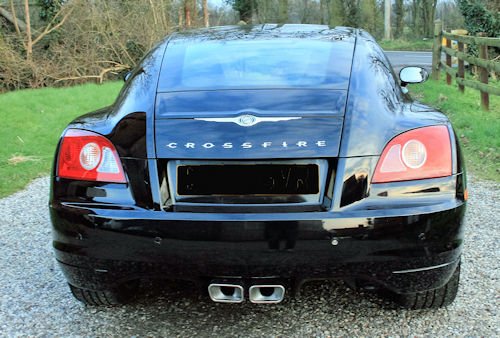

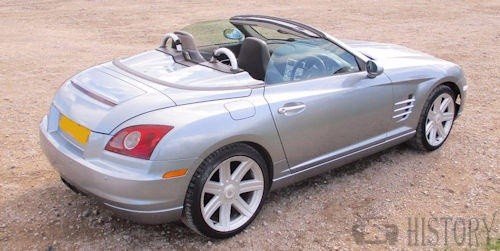

The Crossfire's fastback roof and broad rear fenders made for a rear end design that prompted automotive journalists and writers to compare the new car to American Motors' 1965–1967 Marlin. The "distinctive boat-tail rear end that reminds more than one observer of the old Rambler Marlin." For example, Rob Rothwell wrote "... when I first espied the rear lines of the Chrysler Crossfire I was instantly transported back to 1965 and my favorite car of that year, the Rambler Marlin." Motor Trend also compared the "provocative boattail theme" of the 2004 Crossfire's sheetmetal to that of the AMC Marlin. However, British motoring journalist Jeremy Clarkson had a less kind interpretation of the Crossfire's design, stating that the shape of the rear end resembles the stance a dog takes when defecating.
Construction and features

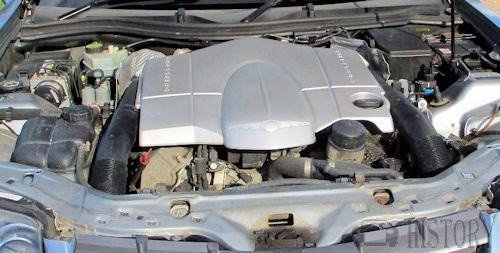

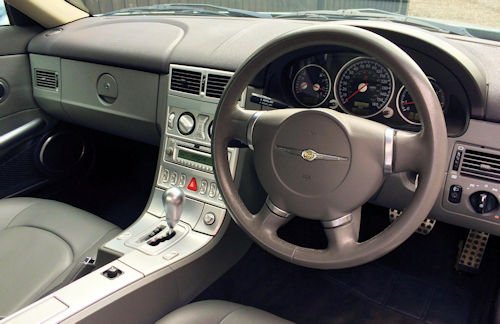

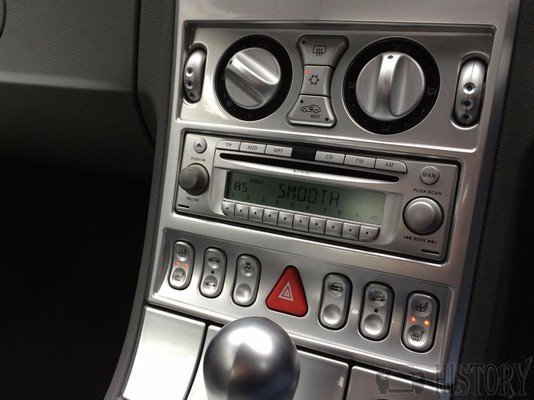

Chrysler executed the interior and exterior styling. All other elements of the car such as wheelbase, track, engine, transmission, chassis structure, suspension components, are shared with the R170 platform. An example of this is the engine bay of the Crossfire, which is virtually identical to the Mercedes-Benz SLK320 on the R170 platform. The seats from the Mercedes-Benz SLK320 would bolt directly into the Crossfire chassis. The dashboard layout, controls and instruments are also similar to those on the Mercedes-Benz SLK320.
|Fuel Capacity||60 litres|
The standard transmission is a 6-speed manual with an optional 5-speed automatic. Base (Standard) and Limited models, originally sold beginning in the 2004 model year, are equipped with a Mercedes-Benz 3.2 L, 18-valve, SOHCV6 engine which produces 215 hp (160 kW) and 229 pound force-feet (310 N·m) of torque. SRT-6 models are equipped with a special supercharged version of the engine built by AMG. SRT-6 models came only with the 5-speed automatic transmission, consistent with AMG cars of the same era. The 6-speed transmission used by the Chrysler Crossfire is a variant of the Mercedes sourced NSG-370. The 5-speed automatic transmission in the Crossfire (known as 5G-Tronic) is also Mercedes sourced and a variant of the 722.6 family. The automatic achieves a better EPA fuel efficiency rating over the 6MT, mostly due to the difference in gear ratios.
Unlike most cars of its time, the Crossfire does not use a rack and pinion steering system; instead, it utilizes a recirculating ball system as employed on the donor R170 platform. Front suspension is unequal length (SLA) double wishbone suspension with 5 point multi link in the rear. All Crossfire models were built with 2 different wheel sizes, the front wheels are 18-in. x 7.5-in. with 225-40/18 tires and the rear wheels are 19-in. x 9-in. with 255-35/19 tires.
The first production Crossfire was driven off the assembly line on 3 February 2003, by Chrysler Group's COO Wolfgang Bernhard in Germany.
Standard and Optional Equipment
The basic equipment standard across all versions of the Chrysler Crossfire

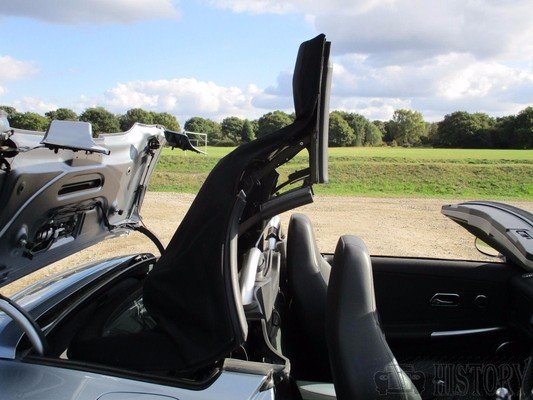

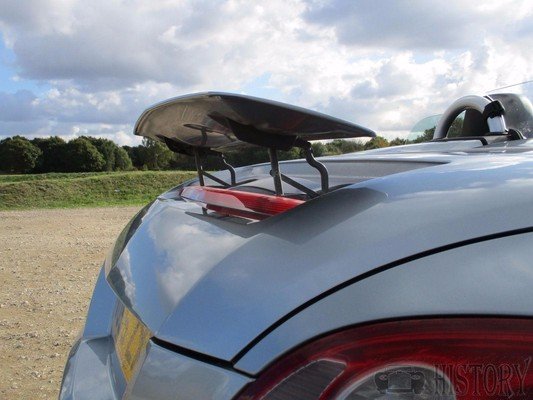

The Chrysler Crossfire was a very well-equipped sports car, even in base form, and included standard features such as large alloy wheels with performance-rated tires, a Becker (part of Harman / Kardon)-sourced A/M-F/M stereo with anti-theft and a single-disc CD player, keyless entry with security alarm, a power-retractable rear wing spoiler, leather-trimmed seating surfaces, dual power front sports bucket seats, full instrumentation, a 3.2L V6 engine with manual transmission, Rear-Wheel-Drive (RWD), a leather-wrapped and stitched steering wheel, a power-retractable cloth convertible roof (for convertible models), front floor mats, and air conditioning.
Optional features on the Chrysler Crossfire included an automatic transmission, a 6-speaker premium Infinity sound system with two (2) "subwoofers" mounted directly behind each seat that also featured a CD based GPS navigational system, exterior paint colors and additional interior color choices.
Sales and Production Numbers
The sales of the Crossfire were slow, with an average 230-day supply of the vehicles during November 2005. In December. Very few Crossfires were imported to the United States and Mexico for 2006 (and almost all of these were roadsters).
Chrysler discontinued the Crossfire after the 2008 model year, as part of its restructuring plans.The last Crossfire rolled off of the assembly line on December 17, 2007.
Officially recognized production numbers by model year by Chrysler and Crossfire International Car Club Incorporated
Base and Limited
For the first model year (2004), only the coupe was offered (with no trim levels), equipped quite similarly to the next year's Limited model. In model year 2005, there were two models available; Coupe and Roadster, each with three trim levels: Base (with fewer amenities), Limited, and SRT-6 (supercharged). There was an SE Roadster model (essentially a base model) in 2006-2007 available only in Blaze Red Crystal Pearl and with black accented 15-spoke SRT-6 style wheels. Base Crossfire models, both Coupe and Roadster, have black painted windshield frames, black filler plugs (in place of fog-lights) in the front fascia, and fabric seats with separate, movable headrests. Limited and SRT-6 models, both Coupe and Roadster, all have silver painted windshield frames and are equipped with fog lights. The Limited has leather upholstery. The SRT-6 model has unique Leather/Alcantara upholstery.
The SRT-6 trim level, as both coupe and convertible, featured an AMG supercharged engine delivering 330 hp (246 kW) and 310 lb·ft (420 N·m) of torque. Other SRT-6 model specific features included suspension and brakemodifications, a front fascia air dam and a fixed vs. retractable rear spoiler. The Crossfire SRT-6 model used the same drive-train, suspension, and braking components as those used on the Mercedes-Benz SLK 32 AMG.
3.2 V6 SRT-6 Performance
|Top Speed||155 mph|
|0-60 mph||5.1 secs|
|Torque||420 Nm, 310 ft-lb|
|CO2 Emissions||264 g/km|
|Euro Emissions Standard||4|
|Miles Per Tank||303 miles|
|Gearbox||5 Speed Auto|
|Drivetrain||Rear wheel drive|
In 2006, the SRT-6 was changed to special order only.
Model Type Model Year
2005 2006 2007 2008 Grand Total Crossfire Coupe 0 1807 770 434 0 3011 Crossfire Limited Coupe 22801 9027 2155 1063 826 35872 Crossfire Limited Coupe (RHD) 2322 983 591 128 0 4024 Crossfire Limited Roadster (both LHD and RHD) 0 18501 4281 1905 960 25647 Crossfire Roadster 0 1806 780 803 0 3389 Crossfire SRT-6 Coupe 0 2419 47 0 0 2466 Crossfire SRT-6 Coupe (RHD) 0 26 79 0 0 105 Crossfire SRT-6 Roadster 0 1252 69 0 0 1321 Crossfire SRT-6 Roadster (RHD) 0 78 101 0 0 179 Grand Total 25123 35899 8873 4333 1786 76014
- LHD = Left hand drive (or steering wheel on the left side)
- RHD = Right hand drive (or steering wheel on the right side)
- Crossfire Coupe and Crossfire Roadster refer to the "Base" model
Year 2003 2004 2005 2006 2007 Production 35,700 28,000 12,500 4,805 2,000
- Note: Cars produced in one calendar year may be marketed as the following model year.
Model Years Engine Displacement Power Torque Handling 0-60 mph (97 km/h) Top Speed Limited 2004–2008 3.2 V6 195.2 cu in (3199 cc) 215 hp (160 kW; 218 PS) 229 lb·ft (310 N·m) Skid pad 1.0g
70 – 0 mph in 161 ft.
6.4 sec (6-speed manual)
155 mph (electronically limited) Base (Standard) 2005–2008 SRT-6 2005–2006 3.2 SuperchargedV6 330 hp (246 kW; 335 PS) 310 lb·ft (420 N·m) Skid pad 1.0g
70 – 0 mph in 157 ft.
4.8 sec (5-speed automatic) 155 mph (electronically limited)
