Cadillac Fleetwood Brougham

Cadillac Fleetwood Brougham specifications

Production period:

1974 to 1986

Class :

Luxury car

Body versions :

Sedan,Coupe

Engines:

Gasoline : 4.1-8.2 liters (93-160 kW)
Diesel engines : V8 5.7 liters (78-93 kW)

Length:

5613-5944 mm

Width:

1913-1915 mm

Height:

1440-1453 mm

Wheelbase :

3084-3378 mm

Curb weight :

1733-2375 kg



The Cadillac Fleetwood Brougham is a 1974 to 1986 produced car model of the US vehicle brand Cadillac .

History

For 1974 The Brougham d Elegance option. which  features crushed velour cloth throughout . With the model year Cadillac gave the traditional name used since 1938 Sixty Special and renamed the model in Fleetwood Brougham.

The Fleetwood Brougham was a luxuriously equipped version of the Deville limousine on longer wheelbase (initially 337.8 instead of 330.2 cm) with otherwise unchanged technology (rear-wheel drive, rigid rear axle, 8.2-liter V8 with quadruple carburettor (193 hp) or Injection (218 hp)).

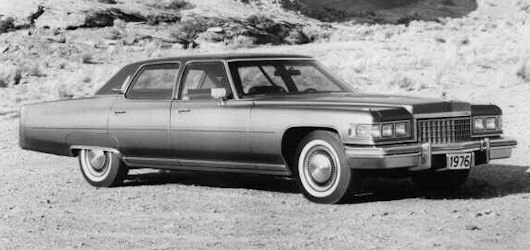

For 1976 the formal styling of the four-door pillar sedan accents the interior which features many special Fleetwood Brougham luxury appointments The Fleetwood Brougham is available in 16 standard and 6, optional fire mist paint colours. 13 Of which are new with this model year. In addition, 11 padded elk grain Vinyl selections for the roof are offered. complemented by 3 available colour accent stripes along with two "special edition" luxury options, the Talisman and the Fleetwood Brougham d' Elegance, both featuring unique interior and exterior trim.

For model year 1977, all Cadillac models were reduced (with the exception of Seville and Eldorado), but retained rear-wheel drive. Since then, the wheelbase (308.6 cm) of Deville and Fleetwood Brougham has been the same. The drive now took over a seven-litre V8 engine (183 hp with carburettor, 198 hp with injection), the power transmission continues the turbo-hydromantic three-speed automatic.

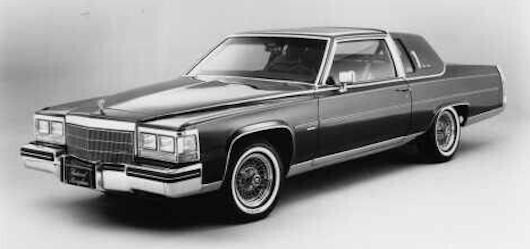

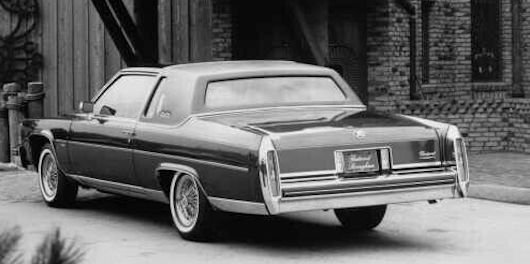

For model year 1980, the cars were slightly revised and received a flatter front end, which should improve the aerodynamics and thus reduce gasoline consumption. At the same time, the seven-Liter was replaced by a six-Liter V8 engine; on request, the diesel V8 was available from Oldsmobile with 5.7 Liter displacement. For the first time there was the Fleetwood Brougham as a two-door coupe.



Cadillac Fleetwood Brougham Service Guide

Only in 1981 was the modular, so-called V8-6-4 engine with 6-liter displacement and cylinder deactivation standard equipment; on request, a 4.1-liter V6 or diesel was still available. From 1982 belonged to a new, developed by Cadillac itself 4.1-liter V8 to the basic equipment and the V6 accounted for.

As the model year 1985, the Fleetwood (together with the Cadillac DeVille ) again downsized and converted to front-wheel drive, the previous Fleetwood Brougham remained as an independent model continues in the Cadillac range and was called from model year 1987 simply Cadillac Brougham . 1986 accounted for the Fleetwood Brougham coupe and the diesel engine; the 4.1-liter V8 was replaced by a five-liter engine (307 cui) from Oldsmobile.

The large rear-wheel drive model remained in production until 1992 and was replaced in the fall of 1992 by the rear-wheel-drive Cadillac Fleetwood on the General Motors D platform, which was related to the Chevrolet Caprice of the time.

Cadillac Fleetwood Brougham (1974-1986)

Related items
Vehicles launched in 1974 | American 1970s | American 1980s | Luxury Cars | Cadillac Fleetwood

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  •  Data Cadillac Fleetwood Brougham (1975-1986)

    model year

    Displacement (cm³)

    Horsepower)

    Wheelbase (cm)

    Length (cm)

    Empty weight kg)

    1975

    8194

    193-218

    337.8

    594.4

    2375

    1976

    8194

    193-218

    337.8

    594.4

    2361

    1977

    6966

    183-198

    308.6

    561.8

    1966

    1978

    6966
    5737 (Diesel)

    183-198
    127

    308.6

    561.8

    1954

    1979

    6966
    5737 (Diesel)

    183-198
    127

    308.6

    561.8

    1925

    1980

    6032
    5737 (Diesel)

    152
    106

    308.4

    561.3

    1823

    1981

    6032
    5737 (Diesel)
    4130 (V6)

    142
    106
    127

    308.4

    561.3

    1746

    1982

    4081 (V8)
    5737 (Diesel)
    4130 (V6)

    127
    106
    127

    308.4

    561.3

    1733

    1983

    4081 (V8)
    5737 (Diesel)

    137
    106

    308.4

    561.3

    1806

    1984

    4081 (V8)
    5737 (Diesel)

    137
    106

    308.4

    561.3

    1806

    1985

    4081 (V8)
    5737 (Diesel)

    137
    106

    308.4

    561.3

    1754

    1986

    5031

    142

    308.4

    561.3

    1787

    model year

    Displacement (cm³)

    Price (US $)

    quantity

    1975

    8194

    10414

    18755

    1976

    8194

    10935

    24,500

    1977

    6966

    11546

    28,000

    1978

    6966
    5737 (Diesel)

    12292

    36,800

    1979

    6966
    5737 (Diesel)

    13446

    42,200

    1980

    6032
    5737 (Diesel)

    14927

    31959

    1981

    6032
    5737 (Diesel)
    4130 (V6)

    15777

    not known

    1982

    4081 (V8)
    5737 (Diesel)
    4130 (V6)

    17,931

    not known

    1983

    4081 (V8)
    5737 (Diesel)

    18688

    not known

    1984

    4081 (V8)
    5737 (Diesel)

    19942

    not known

    1985

    4081 (V8)
    5737 (Diesel)

    21219

    61296

    1986

    5031

    21265

    49115
