BMW 02 1600 ti, 2002 ti, 2002 tii

Production period:	1967-1975
Class:	Sports Car
Body versions:	Saloon, hatchback
Engines:	Petrol :1.6–2.0 litres
Length:	4220-4230mm
Broad:	1590-1620mm
Height:	1360-1410mm
wheelbase:	2500mm
curb weight:	940-1080kg

The BMW 02 "ti" series was a mid-range sports series from BMW that was manufactured between 1967 and 1975.

History

There were only four-cylinder models (engine type M10) with the designations, 1600 TI, 2002 ti, 2002 tii and also a 2002 turbo. The first two digits indicate displacement. The development code is E10 for the 2002 incl. TI and tii, and E20 for the 2002 turbo. The series was replaced in August 1975 by the first BMW 3 Series (E21 series).

The BMW 2002 Tii 2-litre engine with Kugel- Fischer fuel injection, the power output is 130 bhp (DIN) at 5.800 rpm compared with 100 bhp on the normal carburettor version. Top speed is claimed to be 120 mph There is quite a step in the torque curve. which peaks at 4.500 rpm. Final drive ratio is raised from 3.64 to 3.45 to 1 and the wheels have wider rims (5in. instead of 4.5in.) with the same size (165-13in.) radial- ply tyres.

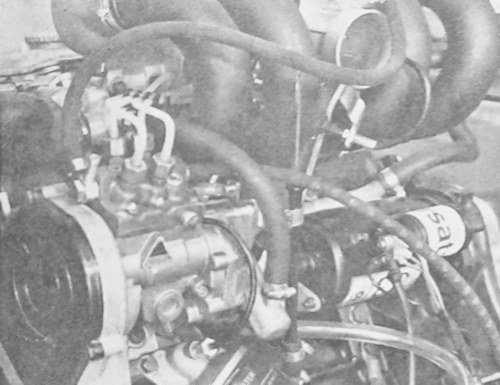

The price new with tax was £2,295, £421 more than that of the 2002.The four-plunger injector pump for the Kugeffischer injection uses nylon supply pipes Drive for the pump is totally enclosed. Air intakes take the form of four separate moulded rubber hoses

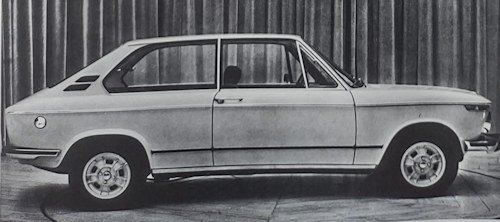

From spring 1971 there were also hatchback variants with the names BMW touring as the top model the touring 2000 tii. At 4.11 m in length, the touring was shorter than the notchback model.

With the facelift in August 1973, the model designation changed, the designation touring was no longer put in front and the type designation was appended with the 2 that was already usual for the sedan, so, the touring 2000 became the 2002 touring and from the 2000 tii touring to the 2002 tii touring.

A very rare variant the BMW 2002ti Diana is the so-called 02 Diana. On the occasion of his marriage to Diana Körner in 1970, the racing driver Hubert Hahne had twelve 2002 ti cars converted as a kind of wedding present – ​​including with twin headlights from the BMW 2800 CS, leather interiors and special Italian aluminium wheels. Each of the twelve copies was painted in a different colour. Four Diana’s are known to have survived, including a Diana Cappuccino.

The abbreviations "ti" (Turismo Internazionale) or "tii" (Turismo Internazionale Iniezione or "Injection") designate the more powerful versions of the M10 engine in the BMW 02. There were three variants:The ti models have 40s Solex twin carburettors, 2002 tii and 2002 turbo have an engine with mechanical Kugelfischer fuel injection, as was also used at that time by Peugeot or in racing, but there mostly in connection with a single throttle or flat slide system instead of the standard throttle valve.

The first model to appear in the summer of 1967 was the 1600 ti, which rolled off the assembly line until the end of 1968. Its 1.6 litre engine produced 105 hp (77 kW).

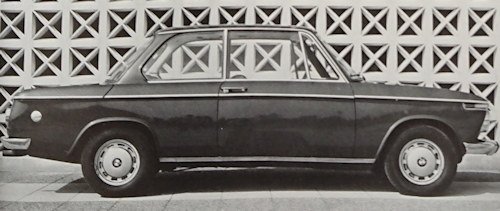

The 2002 ti had a 120 hp (88 kW) engine with a displacement of two litres. It appeared in mid-1968 and stayed in the program until the spring of 1972.

PERFORMANCE Ti
max power (DIN): 120 hp at 5,500 rpm
max torque (DIN); 123 1b ft. 17 kg m at 3.600 rpm
max speed. 115 mph. 185 km/h
power-weight ratio: 17.2 1b 7.8 kg
acceleration: standing 1/4-mile 16.8 sec. 0-50 mph (0-80 km, h) 6.3 sec

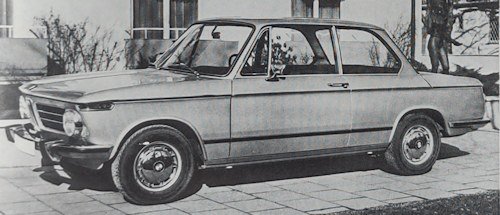

The last stage of evolution was the 2002 tii, introduced in the spring of 1971. Its engine, also with a displacement of two litres, produced 130 hp (96 kW).

PERFORMANCE Tii
max speed: 118 mph, 190 km/h
max power (DIN): 130 hp at 5,800 rpm
max torque (DIN): 131 1b ft, 18.1 kg m at 4,500 rpm
power- weight ratio Saloon: 15.9 lb/hp, 7.2 kg/hp
power-weight ratio Touring: 22.7 lb/hp.
acceleration: standing 1/4-mile 16.7 sec
speed in direct drive at 1,000 rpm: 18.3 mph, 29.5 km/h.
