|(1967 to 1970)|
|Manufacturer||American Motors Corporation|
|Also called|| |
|Production||1967 – 1970|
|Body and chassis|
|Body style|| |
|Platform||AMC’s “senior cars”|
|Transmission||3-speed manual |
3-speed with overdrive
3-speed “Shift-Command” on console
|Wheelbase||114 in (2,896 mm)|
|Width||77.29 in (1,963 mm)|
|Height||53.5 in (1,359 mm)|
|Curb weight||3,500 lb (1,588 kg) approx.|
The AMC Rebel (known as the Rambler Rebel in 1967) is a mid-size car produced by American Motors Corporation (AMC) from 1967 to 1970. It replaced the Rambler Classic. The Rebel was replaced by the similar AMC Matador for the 1971 model year. The Rebel was positioned as the high-volume seller in the independent automaker's line of models.
The Rebel was available in several specialty models that included a limited number of station wagons with special themed trim and luxury equipment that were offered only in certain geographical areas. A high-performance, low-priced muscle car version was produced in 1970, The Machine, that is most recognized in its patriotic or flamboyant white, red, and blue trim.
The Rebel is the shorter wheelbase 'intermediate size' version of the longer wheelbase 'full-size' Ambassador line.
For the U.S. and Canadian markets, the Rebel was built at AMC's "West Assembly Line" (along with the Ambassador) in Kenosha, Wisconsin and at Brampton, Ontario, Canada (Bramalea - Brampton Assembly Plant).
The Rebel was also assembled from Complete knock down (CKD) kits under license in Europe (by Renault), in Mexico (by Vehiculos Automotores Mexicanos), in Australia (by Australian Motor Industries),and in New Zealand (Campbell Motor Industries in Thames). Rebels continued to be sold in these and other international markets under the Rambler brandname.
The Rebel name was introduced by AMC in 1957 as a special model with a big V8 engine: the Rambler Rebel, the first factory-produced lightweight muscle car and the first hint that muscle cars would be part of the company's future.
The Rebel name reappeared in 1966 on the top-of-the-line version of the Rambler Classic two-door hardtop. It featured bucket seats, special trim, and a revised roofline. For 1967, AMC's entire intermediate line took the Rebel name.
The new Rebel models were designed under the leadership of Roy Abernethy, but the automaker changed management with Roy D. Chapin, Jr. as Chairman and CEO was trying hard to change AMC's frumpy image. The redesigned intermediate line began to be promoted with a focus on performance and print advertising as one of the "Now Cars", as well as having numerous factory and dealer installed high-output options.
During its production from 1967 to 1970, the Rebel was available as a six-passenger 4-door sedan, and 2-door hardtop, and a 4-door station wagon with an optional third row seat for two more passengers. In addition, a 2-door sedan (coupé) with a thin B-pillar and flip out rear side windows was available in 1967 only, and a convertible was offered in 1967 and 1968.
The six-cylinder engines that were introduced by AMC in 1964 were continued. However, the 1967 Rebel models introduced the first of a family of all-new V8s that replaced AMC's long-lived "GEN-1" designs in the mid-sized automobile market segment. These included the 290 cu in (4.8 L) and 343 cu in (5.6 L) engines that debuted in the 1966 Rambler American. With a 4-barrel carburetor and dual exhaust, the 343 V8 produced 280 hp (209 kW; 284 PS) at 4800 rpm and 365 pound force-feet (495 N·m) of torque at 3000 rpm. The new Rebels also eliminated the torque tube design used in the Rambler Classic in favor of an open drive shaft with a four-link, trailing-arm rear live axle rear suspension system to provide a more comfortable coil spring ride. The independent front suspension continued to use AMC's unequal-length control arms and high-mount coil springs.
The 1967 Rambler Rebel by American Motors was completely new design from its predecessor Rambler Classic. Now a larger car riding on a two-inch (50 millimeter) longer 114-inch (2,896 mm) wheelbase, the width was also increased by nearly four inches (100 millimeters) to enlarge interior passenger space and cargo capacity. The Rebel had as much interior space as full-size cars from Ford or GM. The new body design was in sharp contrast to its predecessor's "straight-edge" design. The Rebel featured a smooth rounded appearance with sweeping rooflines, a "coke-bottle" body with a shorter rear deck, as well as greater glass area for increased visibility. However, the design "themes" such the "hop up" fenders became so pervasive across the industry that the all-new 1967 Rebel was criticized because "viewed from any angle, anyone other than an out-and-out car buff would have trouble distinguishing the Rebel from its GM, Ford, and Chrysler Corp. competition."American Motors was staying abreast of the fashion and the Rebel was the first "family car with style that rivaled function."
A new safety-oriented instrument panel featured a steering column designed to collapse under impact, and the gauges and controls were grouped in a hooded binnacle front of the driver with the dashboard pushed forward and away from the passengers.
The Rebel models were similar to the senior Ambassador in that they shared the same basic unit body (platform) aft of the cowl. However, the Rebel's front end saw an entirely new concept with a "venturi" grille motif in die cast metal while its rear end featured a simple design with inward-curved taillights. Rebels came in the base 550 and deluxe 770 models, with a high-line SST available only as a two-door hardtop.
The base 550 two-door sedan featured the identical "semi-fastback" roofline as the more expensive pillar-less hardtops, but had slim B-pillars that gave them a more "sporty"coupe appearance. The convertible featured a new "split stack" folding mechanism design that allowed a full-width backseat with room for three passengers. The 4-door sedans continued a traditional notchback form, albeit smoothed from the previously sharp angled roofline. The Cross Country station wagons featured a standard roof rack, all vinyl upholstery, and a drop down tailgate for carrying long loads. A third, rear-facing seat was optional with a side hinged tailgate for easier access. The Rebel 770 wagon was available after mid-year production with 3M's "Di-Noc" simulated wood-grain body side panels trimmed in a slim stainless steel frame.
Starting with the 1967 models, American Motors offered the industry's most comprehensive warranty up to that time: 2-years or 25,000 miles (40,000 km) on the entire automobile, as well as 5-years or 50,000 miles (80,000 km) on the engine and power train. American Motors continued its industry exclusive ceramic-coated exhaust system as standard.
To further emphasize the durability and prove the reliability of the new Rebels, an absolute record of 30 hours flat was set in the long-distance Baja run down Mexico's Baja California peninsula in 1967. A hole in the transmission pan slowed them down, but the endurance racers were able to get the car to a town to get a new one.
The 1968 model year Rebels were introduced on 26 September 1967, and were no longer a Rambler in name. The mid-sized models were now the AMC Rebel, but little was changed except for the safety features and the availability of the 315 hp (235 kW; 319 PS) 390 cu in (6.4 L) V8 option. For ten years AMC "strictly observed the auto industry's anti-racing resolution" but management has changed and the AMC Rebel began to be campaigned on the dragstrips. The top-of-the-line model SST came standard with the 290 cu in (4.8 L) "Typhoon" V8, while all the other models were available with the 232 cu in (3.8 L) I6 engine.
The 1968 models were treated to a modest restyle of the trim, grille, and taillamps. New mandates by the U.S. National Highway Traffic Safety Administration (NHTSA) standards for all passenger cars sold in America for 1968 were incorporated. Among the new safety equipment were a separate shoulder harness for the front seat belts, lighted side marker lights on the front quarter panels just above the wrap around bumper, along with new 3-piece tail lights, front seat headrests, more interior padding, and elimination of bright interior trim. American Motors did not wait for the requirements to cars delivered to dealers after 31 December 1967, but incorporated the safety features starting with the early 1968 model year cars produced in late 1967. Other requirements caused increases to the price of all cars manufactured after 1 January 1968, including exhaust control systems to help reduce unburned hydrocarbon and carbon monoxide emissions.
A new AMC safety and styling feature was also introduced on the 1968 Rebels; the flush-mounted paddle-style door handles. These replaced the former push-button design and become an enduring AMC signature on its passenger vehicles through 1988.
Also new for 1968 was the Rebel 550 Convertible, the last AMC convertible, which replaced the American. The 550 was the base level convertible as the top trim version moved from 770 to the SST model joining the two-door hardtop. The two SST body styles featured more trim and features that included individually adjustable and reclining front seats, as well as simulated air-intakes ahead of the rear wheels. The interiors of AMC's Rebel made extensive use of a new olefin fiber carpeting.
American Motors changed its advertising agency to Wells, Rich, and Greene, which was headed by Mary Wells
The 1969 model year saw elimination of the 550 and 770 models, as well as the convertible body style. The four-door sedan, station wagon, and two-door hardtop were now available in base and SST trim. The automaker was moving the Rebel line to a more "family-oriented" direction and only the two-door SST model received new simulated "louver" trim ahead of the rear wheel openings.
Exterior changes included a new grille, wrap-around taillights, decklid, as well as trim and ornamentation. The front and rear track was increased from 59 in (1,499 mm) to 60 in (1,524 mm), but all other dimensions remained the same.
The interior received a new deeply hooded instrument panel with clustered instruments and controls in front of the driver. The 390 cu in (6.4 L) 315 hp (235 kW) V8 engine was optional on SST models. A comparison of all domestic station wagons by Popular Mechanics noted that the intermediate-size models will not carry 4x8 foot plywood panels flat on the load floor, but described the "cargo space in the Rebel wagons is impressive" featuring 91.12 cu ft (2,580 L) of space.
American Motors produced an innovative advertising campaign for the 1969 AMC Rebel that became one of the best TV commercials in one of 15 categories as selected by a team of experts. Known as a builder of "Aunt Martha fuddy-duddy-type cars, but in the late 1960s, at the peak of America's love affair with the auto, AMC wanted to be jazzy." It had previously taken a "totally rational approach" - such as describing the benefits of factory rust-proofing and long warranty coverage. The goal of the new advertising was to highlight AMC's differences and "make an impact" with the car line. Considered as "one of the funniest TV commercials of all time -- not just for cars" is the 1969 AMC Rebel that is torture-tested by student drivers.

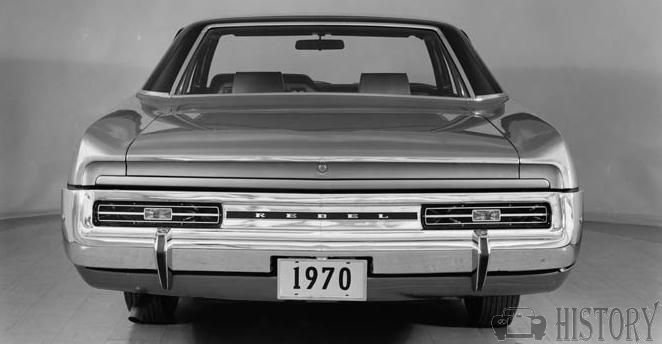

In 1970, the sedan and coupe received a restyled rear-end, along with a new C-pillar shape and rear quarters, as well as a more massive rear end and bumper. The hardtop was changed to a more sloping roofline with upswept reverse-angle quarter windows, giving them "a somewhat huskier look for 1970". The taillights were integrated into a new loop rear bumper with Rebel spelled out between them. The four-door sedans also had an altered roofline with a slimmer C-pillar and larger, squared-off rear door windows. Similarly as on the coupe, the belt line kicked up beneath the trailing edge of the rear door windows, and then tapered back to the same rear fascia as on the hardtop. The Rebel sedans and hardtop models two inches (51 mm) longer than previously. The Rebel station wagons saw no change to their rooflines, doors, and rear fascias.
The grille was again revised with a horizontal spit in the middle and the name, Rebel, was spelled out on the left lip of the hood. The exterior trim, colors, and model identification locations were also modified for 1970. Rebels were available in base or SST trim. The effect of the changes was summarized by the Auto Editor of Popular Mechanics, "the Rebel has a 'no nonsense' air about it I find appealing.
Safety changes included "clam shell" bucket seats with high backed integrated head restraints. The side structure of the 4-door sedans and 2-door hardtops was made stronger. While the competition from the domestic "Big Three" automakers were increasing in size, the Rebel was smaller and lighter, with a six-cylinder manual 2-door hardtop weighing in at 3,110 lb (1,411 kg) and a V8 automatic station wagon at 3,310 lb (1,501 kg)
A major change was to the available V8 engines. The standard 290 cu in (4.8 L) V8 was replaced for 1970 by a new 304 cu in (5.0 L) 210 hp (157 kW; 213 PS) while the 343 cu in (5.6 L) was also supplanted by a 360 cu in (5.9 L). The 360 V8 was available with a 2-barrel carburetor producing 245 hp (183 kW; 248 PS) or in a 4-barrel version producing 290 hp (216 kW; 294 PS). The "AMX" 390 cu in (6.4 L) engine now produced 325 hp (242 kW; 330 PS) and was optional on SST models, while a special high-performance 340 hp (254 kW; 345 PS) version was standard on The Machine. This was the most powerful engine AMC would ever offer in a regular production vehicle. The center console mounted floor-shift automatic transmission cars received a "pistol-handle" shaped grip.
A Popular Science road test comparing six-cylinder intermediate-sized 4-door sedans (Chevrolet Malibu, Ford Torino, and Plymouth Satellite) reported that the Rebel 770 was the quietest, offered the most interior space and trunk room, "yet burns less gas than the others." A Popular Mechanics nation-wide survey based on 316,000 of owner-driven miles (508,553 km)found that style, handling, and comfort abound, but so do minor rattles. The 304 cu in (5.0 L) V8 engine was selected by almost 87% of owners for its combination of performance and durability. The AMC Rebels also excelled "in freedom from mechanical troubles and workmanship complaints" with the magazine noting that owners took "delivery of perfectly-put-together cars - quire a remarkable feat."
The 1970 restyle lasted only one year before a further restyle and renaming the models as the AMC Matador. The four-door and wagon platform would remain unchanged until the retirement of the Matador line after the 1978 model year.
All regular Rebel station wagons were called Cross Country by AMC. During the 1967 model year, AMC issued a series of specialty Rebel station wagons with luxury equipment. Designed to spur interest in all of AMC's products and to generate increased sales for the company, the special wagons were limited for sale to geographical areas. According to automotive historian James C. Mays, the regional wagon marketing program was a success and it contributed to increasing confidence among the public in the "feisty" automaker.
Standard equipment on all regional wagons included 290 cu in (4.8 L) V8 engine (the 343 cu in (5.6 L) was optional), automatic transmission, power steering, power drum brakes, as well as special duty springs and shock absorbers. Each featured a distinctive interior and exterior trim:
- The Mariner (600 units) in Barbados Blue paint with body side panels and rear tailgate trimmed in simulated bleached teak wood planking accented by narrow black horizontal stripes and a "nautical anchor" medallion. The interior featured anchors and stars decorating dark blue suede bolster panels of the seats, which also had white piping and broad horizontal pleated inserts of medium blue antelope grain vinyl. The Mariner was sold along the coastal regions of the United States.
- The Briarcliff (400 units) in Matador Red paint with simulated black camera grain body side panels and "regal" medallions, as well as its own black "antelope grain" vinyl interior. The Briarwood was marketed in major markets in the east and south.
- The Westerner (500 units) in Frost White paint with wood plank trim side inserts for the body side and tailgate, as well as a "Pony Express" medallion. The interior featured stallion brown vinyl that simulated "richly tooled" leather on the seats and door panels in combination with white antelope grained vinyl. The Westerner was available west of the Mississippi River.
Each version included the color-coordinated upholstery and door panels, individually adjustable reclining seats, sports steering wheel, as well as the 91 cubic feet (2.6 m3) of carpeted cargo room, a locking hidden compartment, and a roof rack. Special regional nameplates were on the rear fender in addition to the unique medallions on the C-pillar.
In 1969, a Rebel Raider two-door hardtop was sold only in New York and New Jersey. The marketing of these cars was timed to coincide with the New York City Auto Show. Three hundred Raiders were built and many were part of a “driveaway” by area dealers on the eve of the Auto Show. All Raiders came with a V8 engine with automatic transmission, as well as “blow-your mind colors to choose from: electric green, tangerine, and blue-you’ve never seen.” This was a test market of the “Big Bad” colors by AMC through a regional dealer-lead promotional campaign. The bright hues were later introduced at mid-year on the Javelin and AMX models. Other standard features on the Raider included black upholstery and carpeting, black front grille, black vinyl roof, a sports-type steering wheel, AM radio, power steering, and power brakes. The total price of the special Raider models was advertised at US$2,699.
AMC Rebel The Machine from 1970
The most recognizable muscle car version of the AMC Rebel was named The Machine and available for the 1970 model year, following the success of the 1969 SC/Rambler. In its most patriotic or flamboyant factory trim The Machine was painted white featured bold red, white, and blue reflective stripes (made by 3M) on the bodysides that wrapped over the trunk lid.
Concept muscle models
First proposed in June 1968, the car was to have been a 1969 Rebel coupe finished in black with authoritative black wheels and fat tires, without any stripes, scoops, or spoilers, but with an aggressive, street-fighting stance. The proposed model included "The Machine" decal on the rear (that made it into production), as well as a "fab gear" logo on the front fender.
However, an even earlier attempt at a Rebel-based muscle car was produced by the AMC's engineering team: a 1967 two-door built as a development "project" car for carburetion-testing purposes, as well as with "Group 19" high-performance options and the car was re-equipped with a modified 390 cu in (6.4 L) engine with an estimated 500 hp (373 kW; 507 PS) "capable of running in the 11-second bracket." The car was considered a legal drag racing car, according to National Hot Rod Association (NHRA) and American Hot Rod Association (AHRA) rules and regulations in effect during those years. The Machine was finished in AMC's trademark red, white and blue color scheme, although the color breaks were not the same as on other AMC-backed or -developed race cars.
American Motors' high performance "halo" vehicle made its official debut 25 October 1969, in Dallas, Texas; the site of the National Hot Rod Association's World Championship Drag Race Finals. The Rebel Machine was factory rated at 10.7 pounds per horsepower, positioning the car for the NHRA F-stock class. The introductory marketing campaign consisted of ten vehicles (five with automatics and five with four-speed manuals) that were driven from the factory in Kenosha, Wisconsin to Dallas, Texas and raced in the condition they arrived in. There were four cars on the track "in bone-stock trim" that ran solid mid-14s during the press day at the now-defunct Dallas International Motor Speedway. All these cars were subsequently campaigned at numerous other drag strips, and subsequently sold as used vehicles according to AMC corporate policy. The automaker's marketing objective was for each AMC dealer to have one colorful Rebel Machine on display in their showrooms to lure non-AMC potential customers so they could be introduced to the other models. The most successful dealers actually raced the cars at local drag strips.
The Machine was developed from a collaboration between Hurst Performance and AMC, but unlike the compact SC/Rambler, there was no official connection between the two parties once production commenced. The standard engine in The Machine was AMC's 390 cu in (6.4 L) V8 engine with 340 hp (254 kW; 345 PS) and 430 lb·ft (583 N·m) of torque @ 3600 rpm. It came with special heads, valve train, cam, as well as a redesigned intake and exhaust.This was the most powerful in any AMC vehicle while retaining features required for normal street operations, as well as components to assure outstanding performance characteristics without incurring high-unit cost penalties. The engine is fed by a 690-cfm Motorcraft 4-barrel carburetor, and pumped up a 10.0:1 compression requiring high-octane gasoline.
The Machine features a large ram-air intake hood scoop that was painted Electric Blue (code B6) with a large tachometer visible to the driver integrated into a raised fairing at the rear of the scoop. This hood-mounted tach came from the same vendor as used on competing makes with only different dial faces. Early production hood scoops were fiberglass layups, while those installed on Machines after 1 January 1970 were injection molded and of higher quality. The heavy-duty suspension was augmented by station wagon springs in the rear (with higher load rating) giving the car a raked look. Standard were a Borg-Warner T-10 four-speed manual transmission with a Hurst floor shifter backed by either 3.54:1 or 3.91:1 rear axle gear ratios in the "Twin-Grip" differential, as well as power disc brakes, wide E60x15 Goodyear Polyglas white letter tires mounted on "Machine" mag-styled steel 15-inch (381 mm) x 7-inch (178 mm) wheels, and a black interior with bucket seats and a center armrest upholstered in red, white, and blue vinyl.
During the 1967 model year, American Motors produced a total of 1,686 Rambler Rebel convertibles; all in the top-trim SST model. Automatic power operation of top was standard. The new convertible top design featured a "streamlined" look blending smoothly with the lower body with the top up. Its new "split stack" folding mechanism also allowed a lower stack height with the top folded down, as well as for a full-width backseat with room for three passengers.
For 1968, the Rambler name was dropped and two convertible versions were offered in the Rebel line. A total of 1,200 were produced (823 in the SST version and 377 units in the base 550 model). Since convertibles in the Rambler American and Ambassador series were dropped after 1967, the 1968 Rebels were the only open models built by AMC. This was also the last year for AMC convertibles until this body style was added to the compact Renault Alliance in 1985.
The AMC Rebel was produced under a number of business ventures in foreign markets. In these markets, "the Rebel was still the epitome of the modern mass-produced US sedan."
Rebels from CKD (Completely Knocked Down) kits were assembled by Australian Motor Industries (AMI) in Port Melbourne, Victoria, as well as by Campbell Industries in Thames, New Zealand. NZ models had a two-dial (Ambassador) instrument pack rather than the North American rectangular speedo. The cars were built with right-hand drive and the body had the engine, transmission, front suspension, rear axle, and doors installed in Kenosha, Wisconsin. Other parts were boxed and shipped inside the car for final assembly in Australia or New Zealand. Australian models had to have aftermarket amber rear indicator lights fitted in the boot lid as flashing red indicators (allowed in New Zealand) were barred across the Tasman. Numerous other parts and components were sourced locally to gain tariff concessions.
Under a partnership agreement that was developed in 1961 with the French automaker Renault, the Rebel's two-door hardtop was added for the first time to the traditional 4-door sedan body style of the Renault Rambler. The new for 1967 designs were assembled in Haren, Belgium and sold by Renault dealers in Algeria, Austria, Belgium, France, the Netherlands, and Luxembourg. The Rambler served as the executive car in Renault's model line, but the entirely new design was larger car with more power than the previous Rambler Classic and no longer suitable for European automobile tax regimes or road conditions. The 1967 models were priced 20 to 25% more than the previous year's, so production ended in the summer of 1967.
American Motors had partial ownership of Vehiculos Automotores Mexicanos (VAM) and the Mexican operation produced equivalent AMC Rebel models. Mexican regulations required VAM vehicles had to have at least 60% locally sourced parts. The large-sized VAM cars in only two body styles, a two-door hardtop called the Rambler Classic SST, and a four-door sedan called the Rambler Classic 770 under license from 1967 through 1970, no other trim levels or designations were available. The car was VAM's entry in the luxury segment of the Mexican auto market in contrast with its other lines that focused on economy. The VAM Classic represented the company's flagship model, a treatment that in the United States was given to the AMC Ambassador models.
In addition to different model names and marketing concept, the Mexican versions also adapted AMC I6 engines to local conditions.They also came with more upscale interiors compared their counterpart models sold in the United States and Canada. The standard engine was the 155 hp (116 kW; 157 PS) 232 cu in (3.8 L) I6 with two-barrel carburetor from 1967 through 1969, even though the Rambler Classic SST had the option of VAM's own 252 cu in (4.1 L) I6 early in 1969, which became standard equipment several months late in the year. Since 1970, both versions were equipped with VAM's 170 hp (127 kW; 172 PS) 252 cu in (4.1 L) I6 with two-barrel Carter carburetor and 266 camshaft from the factory. The cars were restricted to a three-speed manual transmission in 1967 and 1968, but were available with an optional column mounted three-speed automatic starting in 1969. Rear gear ratios included a 3.73:1 for 1967 and a 3.54:1 for the remainder of the run. External cosmetic changes over the years in VAM Rambler Classics were mostly the same as in the U.S. and Canadian market Rebels.
Both VAM Rebel-based Rambler Classics included almost the same equipment between the two body styles with only a few exceptions. The largest difference was in the front seats. The Classic 770 came with full-width bench seat while the Classic SST had individually adjustable units, even though some of the hardtops came with a front bench. The standard features included flow-through ventilation, front door flip-open air vents, four-wheel drum brakes, standard suspension, rigid four-bladed cooling fan, day-night rearview mirror, two-speed electric wipers, electric washers, luxury steering wheel, electric clock, 200 km/h speedometer, cigarette lighter, front ashtray, AM Motorola radio with antenna, locking glove box, courtesy lights, dual rear ashtrays, four side armrests, front two-point seatbelts, dual coat hooks, dual dome lights on C-pillars (except 1969-1970 sedan), single dome light on headliner (1969-1970 sedan only), fold-down armrest integrated to the rear seat back, bright molding package, luxury wheel covers, back-up lights, turn lights, and driver's side remote mirror. Optional equipment for both models included power drum brakes (standard with automatic transmission), power steering, automatic transmission (not available in 1967 and 1968), remote controlled driver and passenger outside mirrors, rubber-faced bumper guards, and a locking gas cap, among others. Sales the two-door hardtop body style declined in 1970.
