Alfa Romeo 2600 Sprint Zagato
1963 to 1967
Ercole Spada at Zagato (SZ)
2.6 L DOHC straight-6
101.57 in, 2580 mm
179.13 in, 4550 mm
65.08 in, 1653 mm
2425 1b, 1100 kg

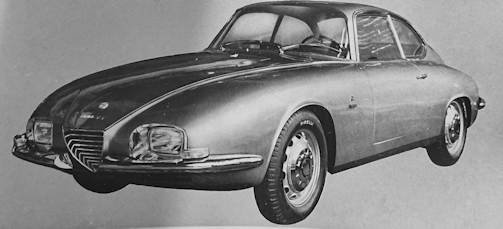

The Alfa Romeo 2600 Sprint Zagato (SZ) was presented by Alfa Romeo In 1963.
At the Salon de Geneve, in March 1962, An evolution of the 2000 range is unveiled in the form of the sedan 2600, which will be produced until 1968.In 1963 Zagato presented the prototype of its interpretation of the 2600, designed by Ercole Spada, with an aerodynamic line that could be recognized from the front end fitted with elliptical-shaped headlights and a particularly large Alfa Romeo trilobe, it was distinguishable by the particularly original lines that recall the contemporary Zagato style, making it similar to a Lancia Flaminia Super Sport.
The car was put into production only in 1965 and produced for only two years, with only 105 units built until 1967. In 1962, Carrozzeria Pininfarina presented its proposal for the nascent 2600 series. First it presented a sedan, then it created a red spider and, transforming the same car, an emerald green coupé. With integral chassis the front suspension as independent, wishbones, coil springs,anti-roll bar, with telescopic dampers at the rear rigid axle, trailing lower radius arms, transverse linkage bars, coil springs and telescopic dampers.
The 2600 Spider Speciale was presented at the 1962 Turin and Geneva Motor Shows, painted red, characterized by a clean and elegant line, with retractable headlights and a very special shield in which the Visconti snake and the Milan cross of the small round emblem they grow larger to occupy the entire Alfa Romeo trefoil, as already seen on their only sedan ever made. The car was later transformed into the 2600 Coupé Speciale presented at the Brussels Motor Show in January 1963, also equipped with other aesthetic changes, including the change of colour from red to green and the adoption of spoked wheels. After having lost track of it over the years, it was rediscovered in the United States and restored according to the specifications of the Brussels Motor Show.
The 2600 SZs are very rare with only 105 cars produced today they are by far the most valuable model in the 2600 range.
The twin cam engine of 2582 cu cm with light alloy cylinder block and cylinder head fitted with 3 Solex 44 PHH horizontal twin barrel carburettors produced 165 hp at 5900 rpm.
- Engine capacity: 157.91 cu in, 2582 cu cm
- Fuel consumption: 17.6 m/lmp gal, 14.7 m/US gal, 16 1 x 100 km
- Max speed: 133.6 mph, 215 km/h
- max power (SAE): 165 hp at 5900 rpm
- max torque (SAE):159 1b ft, 22 kgm at 4000 rpm
- max number of engine rpm: 6000
- specific power 63.9 hp/l
- power-weight ratio: 14.8 lb/hp, 6.7 kg/hp
- speed in top at 1000 rpm: 19.9 mph, 32.1 km/h.
- max speed in 1st gear: 29.8 mph, 48 km/h
- max speed in 2nd gear: 49.7 mph, 80 km/h
- max speed in 3rd gear: 73.3 mph, 118 km/h
- max speed in 4th gear: 98.8 mph, 159 km/h
- max speed in 5th gear: 133.6 mph,215 km/h
Alfa Romeo 2600 SZ Technical details and specifications (1963-1967)
4 stroke; cylinders: 6, vertical,
bore and stroke: 3.27 x 3.13 in, 83 x 76.6 mm
engine capacity: 157.91 cu in, 2582 cu cm
compression ratio: 9 : 1
cylinder block: light alloy, wet liners
cylinder head: light alloy, hemispherical combustion chambers
crankshaft bearings: 7
valves: 2 per cylinder, overhead, Vee-slanted, with rockers
camshaft: 2, overhead
lubrication.gear pump, full flow filter
carburation: 3 Solex 44 PHH horizontal twin barrel carburettors
fuel feed:electric pump
cooling system: water
driving wheels: rear
clutch: single dry plate, hydraulically controlled
gear box: mechanical gears: 5 + reverse
synchromesh gears: all
gear box ratios: (I) 3.304, (II) 1.987, (III) 1.354, (IV) 1, (V) 0.790, (Rev) 3.010
gear lever: central
final drive: hypoid bevel; ratio: 4.78 : 1.
front suspension: independent, wishbones, coil springs,anti-roll bar, telescopic dampers
rear suspension: rigid axle, trailing lower radius arms, transverse linkage bars, coil springs, telescopic dampers.
worm and roller
turns of steering wheel lock to lock: 4.
front disc (Girling), rear drum, servo.
voltage: 12 V
battery: 50 Ah
dynamo: 300 W;
headlights: 4 front and reversing.
DIMENSIONS AND WEIGHT:
wheel base: 101.57 in, 2580 mm
front track: 55.12 in,1400 mm
rear track: 53.94 in, 1370 mm
overall length: 179.13 in, 4550 mm
overall width: 65.08 in, 1653 mm
overall height: 51.97 in, 1320 mm
dry weight:2425 1b, 1100 kg
turning radius (between walls): 19.7 ft, 6 m
tyres: 6.50 - 15.8
fuel tank capacity: 13.20 imp gal, 15.84 US gal, 60 1.
© Motor car History
Alfa Romeo 2600 SZ Maintenance and Service Guide (1963-1967)
fuel: petrol, 95-100 Oct
engine sump oil: 5.3 imp qt,6.3 US qt, 6 1, SAE 20W-40, change every 1800 miles, 3000 km
total lubricating system capacity: 6.1 imp qt, 7.4 US qt
gearbox oil:1.4 imp qt, 1.7 US qt, 1.6 1, SAE 90, change every 1800 miles, 3000 km
final drive oil: 2.2 imp qt, 2.6 US qt, 2.5 1, SAE 90, change every 7400 miles,12000 km
steering box oil: 0.2 imp qt, 0.2 US qt, 0.2 1, SAE 90, change every 7400 miles, 12000 km
cooling system capacity: 13.2 imp qt
greasing: every 1800 miles, 3000 km
tappet clearances:inlet 0.014 in, 0.35 mm, exhaust 0.016 in, 0.4 mm
valve timing: (inlet) opens 20° 36' before tdc and closes 56° 48' after bdc, (exhaust) opens 70° 36' before bdc and closes 6° 48' after tdc
tyre pressure (medium load): front 30 psi,2.1 atm, rear 31 psi, 2.2 atm.
