Škoda 973 (1952-1956)
Off-Road
Czech Republic
1950s

Škoda 973

Škoda 973 jeep

Years:

1952 to 1956

Class :

off road

Body design :

jeep

Engine:

Gasoline :1.2-1.5 liters(33-38 kW)

Wheelbase:

2200 mm (86.6 in)

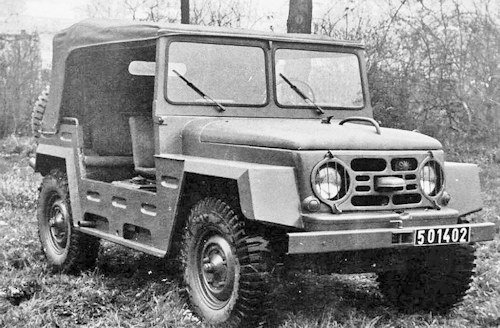

The Škoda 973 was the prototype of a off road open jeep with four-wheel drive built in the 1950s.

 History

The Škoda 973 was a 4 door,four-seat vehicle with soft top was developed in 1952 and had a self-supporting full steel body.

At first The water-cooled, overhead four-cylinder in-line four-stroke engine had a displacement of 1221 cc and a power of 45 hp (33 kW). This accelerated the 1190 kg vehicle on land up to 90 km / h. The main gearbox with reduction gear and differential was flanged to the engine block and the drive power was transmitted to all four wheels.This vehicle was also available with a larger engine with 1491 cc with 2 Solex carburators, and a power of 52 hp (38 kW).

There never was a mass production made.

Edited By
MCH
Created
04 March 2022
Updated
04 March 2022
Related items
Vehicles launched in 1952 | Jeep | Military | off road

Technical

Technical
  • Škoda 973 1500 Technical details and specifications (1952 to 1956)

    Body type: off-road jeep type

    Maximum speed: 90 km/h, 56 mph
    Number of doors: 4
    Number of seats: 4
    Engine position: front
    Drive wheel: 4x4, AWD
    Fuel: petrol
    Number of cylinders: inline 4
    Cooling: liquid
    Capacity: 1491 ccm, 90.6 cu-in
    Bore : 78.0 mm, 3.071 in
    Stroke: 78.0 mm, 3.071 in
    Valve Gear: OHV
    Valves per cylinder: 2
    Fuel system: carburator, 2 x Solex
    Aspiration: normal
    Gearbox: M4+R

    Dimensions
    Wheelbase: 2200 mm, 86.6 in
    Front track: 1350 mm, 53.1 in
    Rear track: 1350 mm, 53.1 in
    Length: 3345 mm, 131.7 in
    Width: 1650 mm, 65 in
    Height: 1650 mm, 65 in
    Weight: 1190 kg, 2624 lb
