Vans Pick-ups
Japan
1980s
Service Manual
Yes

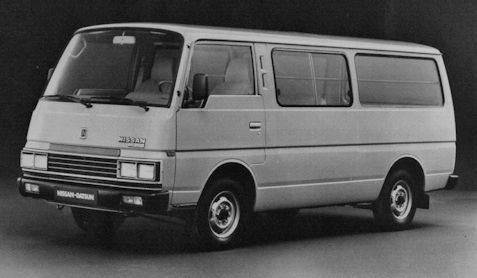

Nissan Urvan Caravan second generation

Nissan Urvan Caravan specifications Service Guide

Make

Nissan Datsun

Also called

Homy,Yulon Homer

Production

1980 to  1986

Class

Commercial vehicle

Engines

Petrol:

1.6 L J16 OHV I4

1.8 L Z18S I4

2.0 L H20 OHV I4

2.0 L Z20S I4

Diesel:

2.0 L LD20T turbo I4

2.2 L SD22 I4

2.3 L SD23 I4

Wheelbase

SWB: 2,350 mm (92.5 in)

LWB: 2,690 mm (105.9 in)

Length

SWB: 4,350 mm (171.3 in)

LWB: 4,690 mm (184.6 in)

Width

1,690 mm (66.5 in)

Height

1,950 mm (76.8 in)



The second generation of the Datsun Urvan / Caravan (type E23) was introduced in August 1980. The engines were the well-known J16, Z20 S and H20 Nissan petrol engines. Also, The SD22 diesel has been redesigned and has since been supplied with a five-speed manual transmission. There was a new Van version the so-called luxury GL version, which had an optional "Nissanmatic" automatic transmission and power steering, sliding rear seats and air conditioning.
At the Tokyo Motor Show in 1981, two concepts were introduced - designed to provide limousine-style mobile accommodation for business people - the Royal and Elgrand Royal Line. The name Elgrand is now used by Nissan for a range of luxurious minivans.
In May 1982, the caravan experienced a slight facelift, the removal of ventilation windows in the front doors, a new dashboard was introduced and the SD23 diesel engine replaced the previous SD22. Radial tires became the standard for all models. For more power, the LD30 turbo diesel was available.
In April 1983, there was another light facelift, the SGL and GL versions got a new look with four square headlights.
In January 1985, the diesel versions received an improved heating system and the safety equipment was improved on all Urvan’s. a new dashboard was introduced and the SD23 diesel engine replaced the previous SD22. Radial tires became the standard for all models. For more power, the LD30 turbo diesel was available A ten-seater version has also been added. At the same time Datsun Urvan became the Nissan Urvan in Europe due to the discontinuation of the brand name Datsun.

Nissan Previous 118 / 124 Next

Related

Related items
Nissan Urvan | Japanese Vehicles 1980s | Vehicles launched in 1980 | Vans | Commercial vehicles

Technical

Technical
  • ENGINE
    (Diesel)
    Nissan 2.3L type SD23
    power 67 bhp (DIN) a' 4000 rpm
    Torque: 14,6 kg-m (DIN) a! 2000 rpm
    Bore: 89.0 mm
    Stroke: 92.0 mm
    Cubic Capacity. 2289 cc
    Compression Ratio: 20.5:1

    ELECTRICAL EQUIPMENT
    Voltage; 12V
    Battery Capacity: 80Ah
    Alternator: 55A
    Starter Motor: 1.8kw

    CLUTCH
    Hydraulically operated single dry disc.
    Diameter: 240 mm

    TRANSMISSION
    Rear wheel drive.
    Nissan 5 speed, all synchromesh and reverse.
    Ratios:
    1st - 4.22:1
    2nd - 2.54:1
    3rd - 1.64:1
    5th - 0.813:1
    Reverse -3.657:1
    REAR AXLE -Ratio: 4.375:1

    SUSPENSION
    Front: Independent by wishbone and tension rod With torsion bars.
    Rear: Rigid axle and semi-elliptic leaf springs.

    FUEL TANK
    Capacity 58 litres.

    CHASSIS
    Monocoque.

    BODY
    Pressed steel

    -Note: Full Specifications and Repair Manuals available for registered users-
