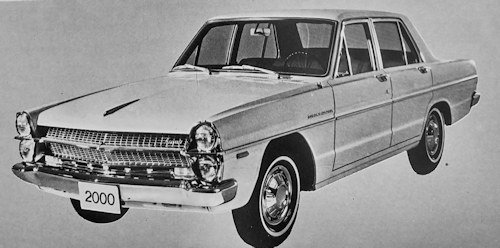

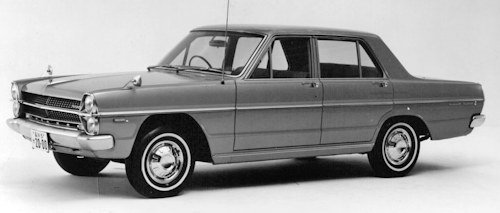

Nissan Gloria 3rd generation (A30 type)
![]() | |
Production | April 1967 to February 1971 |
Class | Motor Car |
Bsody type | 4 door sedan and station wagon van |
Drive system | FR |
Engine | 2.0L straight 6 and 2.0L straight 4 |
Transmission | 3-speed AT / 4-speed MT / 3-speed MT |
Wheelbase | 105.90 in, 2,690 mm |
Length | 184.65 in, 4,690 mm |
Width | 66.75 in, 1,695 mm |
Height | 56.90 in, 1,445 mm |
Weight | 2,690 1b, 1,220 kg |
maximum speed | 99.4 mph 160km/h |
The 3rd generation Nissan Gloria A30 type series was built from 1967 to 1961 in Japan by now Nissan.
History
In April 1967, the still developed by Prince Gloria type A30 appeared as Nissan. The new angular body was now much more modern.

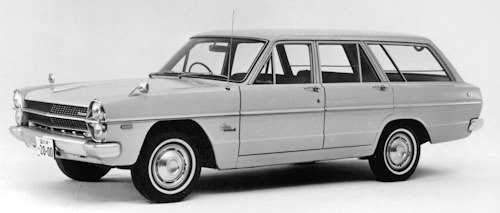

The elaborate DeDion rear axle gave way to a simple rigid axle, The drive took over initially the prince two-litre six-cylinder, which was replaced in 1969 by a Nissan six-cylinder same displacement. There were also offered a four-door sedan (Gloria, Gloria Super 6 and Gloria Super Deluxe) and a five-door station wagon (Gloria Van and Van Deluxe). The car name given was the " Nissan Gloria ". However, the car name on the inspection certificate was still "Prince" (originally Prince was developing it as "S6 series").
The 4-light headlamps with both sides of the front lined up vertically are similar to the Nissan Prince Royal, which was developed by Prince like Gloria and announced after the merger with Nissan (however, there was no sharing of body parts), so it was called "Royal" at that time.
It is also called by nicknames such as "Vertical Gloria" and "Tategro" due to its distinctive front headlight design. This design was influenced by American cars around in the 1960s. The grade levels at the time of release are the super deluxe, super 6 (6 cylinders or more) fitted with a single Nippon-Kikaki downdraught twin barrel carburettor, standard (4-cylinder gasoline / LPG), van deluxe (6 cylinders), van standard (4 cylinders). Later an GL, which is a luxurious version of Super Deluxe, was added. Auto cars were also set for 6-cylinder cars, and they were often used in private taxis. Since development even during the merger drama, the sharing of parts with Cedric range was used. The traditional de Dion axle used for the rear suspension has given way to a simple more traditional leaf type the distribution of weight was 54.5% to the front axle and 45.5% rear axle. Also, from this model, following the second-generation Skyline, the Prince system shifted to a complete monocoque type body. The 6-cylinder engine was the G7 unit, a direct descendant of the prince (PA30), and the 4-cylinder was the Nissan H20 from the beginning (A30).
PERFORMANCE: Super Six
- Engine Capacity 121.31 cu in, 1,988 cu cm
- Fuel Consumption 23.5 m/imp gal, 19.6 m/US gal, 12 1 X 100 km
- Max Speed 99.4 mph, 160 km/h
- Max power (SAE): 106 hp at 5,400 rpm
- Max torque (SAE): 116 1b ft, 16 kg m at 3,800 rpm
- Max engine rpm: 6,200
- Specific power: 53.3 hp/l
- Power-weight ratio. 25.4 lb/hp, 11.5 kg/hp
- Acceleration: standing 1/4 mile 19.9 sec
The standard specification price in the Tokyo area is 1,015,000 yen for Super 6. The standard was 755,000 yen. The production volume of the third generation is about 50,000
- April 1967 - Released.
- October 1968 - Minor change. Changes such as a facelift to front.
- November 1969 - Minor change. The 6-cylinder engine is changed to Nissan's L20 type (HA30).
- October 1970 -Added GL equipped with power steering etc.
Description
Technical
-
Nissan Gloria 3rd generation Technical details and specifications (1967-1971)
ENGINE
location front, 4 stroke
cylinders: 6, in line
bore and stroke: 2.95 x 2.95 in, 75 x 75 mm
engine capacity: 121.31 cu in, 1,988 cu cm
compression ratio: 8.8
cylinder block: cast iron
cylinder head: cast iron
crankshaft bearings: 4
valves: 2 per cylinder, overhead, rockers
camshafts: 1, overhead
lubrication: gear pump, full flow filter
lubricating system capacity: 9.70 imp pt, 11.63 US pt, 5.5 1
carburation: 1 Nippon-Kikaki downdraught twin barrel carburettor
fuel feed: mechanical pump
cooling system: waterTRANSMISSION
driving wheels: rear
clutch: single dry plate (diaphragm)
gearbox: mechanical; gears: 3 + reverse and overdrive/top
gearbox ratios: 1st 2.957, 2nd 1.572, 3rd 1, overdrive/top 0.785, rev 2.922
gear lever location: steering column
final drive: hypoid bevel
axle ratio: 4.875.CHASSIS
type integral
front suspension: independent, wishbones, coil springs, anti-roll bar, telescopic dampers
rear suspension: de Dion rigid axle, semi-elliptic leafsprings, telescopic dampers.STEERING
recirculating ball
turns of steering wheel lock to lock: 4.10.
turning circle (between walls): 39.5 ft, 12 mBRAKES
front disc, rear drum, servo
lining area: front 26.65 sq in, 171.89 sq cm,
lining area: rear 67.60 sq in, 436.02 sq cm
lining area: total 94.25 sq in, 607.91 sq cm.ELECTRICAL EQUIPMENT
voltage: 12 V
battery: 50 Ah
generator type: alternator, 420 W
ignition distributor: Mitsubishi
headlamps: 4.DIMENSIONS AND WEIGHT
wheel base: 105.90 in, 2,690 mm
front track: 54.53 in, 1,385 mm
rear track: 54.72 in, 1,390 mm
overall length: 184.65 in, 4,690 mm
overall width: 66.75 in, 1,695 mm
overall height: 56.90 in, 1,445 mm
ground clearance: 6.90 in, 175 mm
dry weight: 2,690 1b, 1,220 kg
distribution of weight: 54.5% front axle, 45.5% rear axlePrince / Nissan Gloria:
A30 / 2.0
A130 / 2.0
Engine:
6-cylinder in-line engine (four-stroke)
displacement:
1988 cm³
1998 cm³
Bore × stroke:
75 × 75 mm
78 × 69.7 mm
Power at 1 / min:
78 kW
(106 SAE-PS)
at 520092 kW
(125 SAE-PS)
at 6000Max. Torque at 1 / min:
157 Nm at 3600
167 Nm at 4000
Compression:
8.5: 1
8.6: 1
Fuel supply:
1 downdraft double carburettor
Valve control:
Overhead camshaft, drive via chain
Cooling:
water cooling
Transmission:
4-speed transmission
Three-speed automatic
rear-wheel driveFront suspension:
two unequal length wishbones, coil springs
Rear suspension:
Rigid axle, semi-elliptic leaf springs
brakes:
Disc brakes in front, drum brakes in the back
Steering:
Recirculating ball steering
Body:
Sheet steel, self-supporting
Track front / rear:
1385/1390 mm
Wheelbase:
2690 mm
Dimensions:
4690 × 1695 × 1445-1500 mm
Empty weight:
1330-1370
maximum speed:
160 km / h
170 km / h
Consumption (litres / 100 kilometres):
12-14 N
© Motor car History
-
Nissan Gloria 3rd generation maintenance and Service Guide (1967-1971)
Fuel type: 100 oct petrol
Engine oil change: 9.7 imp pt, 11.63 US pt, 5.5 1, SAE 20 (winter) 30 (summer), change every 4,000 miles 6,400 km
Cooling system capacity: 18.85 imp pt, 22.62 US pt, 10.7 1.
Gearbox oil: 4.40 imp pt, 5.28 US pt, 2.5 1, SAE 90, change every 38,000 miles, 61,200 km
Final drive oil: 2.10 imp pt, 2.54 US pt, 1.2 1, SAE 90, change every 38,000 miles, 61,200 km
Greasing: every 38,000 miles, 61,200 km, 10 points
Tappet clearances: inlet 0.008 in, 0.20 mm, exhaust 0.008 in, 0.20 mm
Valve timing: inlet opens 24° before tdc and closes 46° after bdc, exhaust opens 54° before bdc ary closes 16° after tdc
Normal tyre pressure: front 24 psi, 1.7 atm, rear 24 psi, 1.7 atm
Width of rims: 5"
Tyres: 6.94 x 14
Fuel tank capacity: 11 imp gal, 13.2 US gal
Carrying capacity: 1,058 1b, 480 kg© Motor car History
