Isuzu Bellel

Isuzu Bellel range (1962-1967)

Production period:

1962 to 1967

Make:

Isuzu

Class :

motor car

Body versions :

saloon , station wagon

Engines:

Gasoline engine 1.5-2.0 liters (53-63 kW)
Diesel engine : 2.0 liters (41 kW)

Length:

4440-4485 mm

Width:

1690 mm

Height:

1490-1540 mm

Wheelbase :

2530 mm

Curb weight :

1170-1330 kg

successor

Isuzu Florian

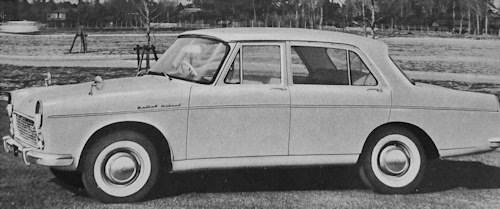

The Isuzu Bellel was produced from 1962 to 1967  its a mid-size model of the Japanese car manufacturer Isuzu .

History

It was developed as Isuzu's first self-developed passenger car before the expiration of the partnership with Isuzu Hillman Minx, which was domestically produced through a technical partnership with the Roots Group in the UK.In addition to the original type based on the Hillman Minx Isuzu developed as the first own model, the mid-size sedan Bellel which was introduced in 1961. The original model, a four-door sedan with two-liter gasoline engine in standard and deluxe version, joined a 1.5-liter variant with Nippon Kikaki downdraft twin barrel carburettors.styled by Carrozzeria Pininfarina in the 1950s the tail lamps were triangular, which was extremely unique

PERFORMANCE: 2.0L
ENGINE CAPACITY: 121.77 cu in, 1990.94 cu cm;
FUEL CONSUMPTION: 38.1 m imp gal, 31.8 m US gal, 7.4 1 x 100 km;
MAX SPEED: 90.1 mph, 145 km/h
max power (SAE): 98 hp at 4600 rpm
max torque (SAE): 117 1b ft, 16.2 kgm at 2400 rpm
specific power: 49.2 hp/l
max speed in 1st ear: 24.8 mph, 40 km/h
max speed in 2nd gear: 36.0 mph, 58 km/h
max speed in 3rd gear: 64.6 mph, 104 km/h
max speed in 4th gear: 90.1 mph, 145 km h

A version with two-liter diesel engine and also Bellel estate version.  The diesel engine a first for a Japanese passenger car made the Bellel popular for commercial applications, also with diesel engine, added fitted with Drum brakes all around.The design goal was to "take advantage of Hillman's strengths and add a unique design", and it was an absolute requirement to make it a six-seater, which would be advantageous for sales to the taxi industry produced through a technical partnership with the Roots Group in the UK .

However, due to the diversion of a diesel engine for trucks , the intensity of the engine's vibration and noise was at a level that could not be ignored as a passenger car, and it was notorious for the taxi drivers because of the vibration and noise.

PERFORMANCE:2000 Diesel engine
Engine capacity: 121.49 cu in, 1,991 cu cm
Fuel consumption: 33.2 m/imp gal, 27.7 mlUS gal, 8.5 1 x 100 km
Max speed: 66 mph, 106.3 km/h
max power (DIN): 55 hp at 3,800 rpm
max torque (DIN): 89 1b ft, 12.3 kg m at 2,200 rpm
max number of engine rpm: 4,200
specific power: 27.6 hp/l
power- weight ratio: 53.1 lb/hp, 24.1 kg/hp

1962, the front end was revised, 1965 was another facelift .In just six years, a total of about 37,000 copies, the successor model was the Isuzu Florian .

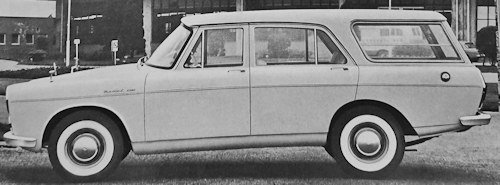

Isuzu Bellel wagon (1962-1967)

Related items
Japanese Vehicles from 1960s | Vehicles launched in 1962 | Taxi | Pininfarina

Technical

  • Isuzu Bellel Technical details and specifications (1962-1967)

    ENGINE: 2.0L Petrol
    front, 4 stroke
    cylinders: 4, in line
    bore and stroke; 3.27 x 3.62 in, 83 x 92 mm
    engine capacity: 121.77 cu in, 1990.94 cu cm
    compression ratio: 8.5 : 1
    cylinder block: cast iron
    crankshaft bearings: 3
    valves: 2 per cylinder,
    Cylinder head: cast iron
    carburation: 2 Nippon Kikaki downdraft twin barrel carburettors, 1 type 2D-34AK
    fuel feed: mechanical pump
    cooling system: water

    ENGINE:2.0L Diesel engine
    front, 4 stroke, Diesel
    cylinders: 4, vertical, in line
    bore and stroke: 3.27 x 3.62 in, 83 x 92 mm
    engine capacity: 121.49 cu in, 1,991 cu cm
    compression ratio: 21
    cylinder block: cast iron
    cylinder head: cast iron
    crankshafts bearings: 3
    valves: 2 per cylinder, overhead, in line, push-rods and rockers
    camshafts: 1, side
    lubrication: rotary pump, full flow filter
    carburation: injection pump
    fuel feed: mechanical
    cooling system: water


    TRANSMISSION:
    driving wheels: rear
    clutch: single dry plate
    gear box: mechanical; gears: 4
    final drive: ratio: 4.1 .

    CHASSIS:
    integral
    front suspension: independent, wishbones, coil springs, anti-roll bar, telescopic dampers
    rear suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers.

    STEERING:
    recirculating ball.
    turning radius (between walls): 17.7 ft, 5.4 mm

    BRAKES:
    drum.

    ELECTRICAL EQUIPMENT:
    voltage: 12 V
    battery: 50 Ah
    dynamo: 300 W
    ignition distributor: Hitachi D407-01.

    DIMENSIONS AND WEIGHT:Saloon
    wheel base: 99.68 in, 2530 mm
    front track: 52.76 in, 1339 mm
    rear track: 53.5B in, 1360 mm
    overall length: 176.71 in, 4485 mm
    overall width: 59.18 in, 1690 mm
    overall height: 58.82 in, 1493 mm
    ground clearance: 7.69 in, 195 mm
    dry weight: 2723 1b, 1235 kg

    © Motor car History



    Isuzu Bellel:

    1500

    2000

    diesel

    express

    Engine:

    4-cylinder in-line engine (four-stroke)

    displacement:

    1491 cm³

    1991 cm³

    Bore × stroke:

    78 × 78 mm

    83 × 92 mm

    Power at 1 / min:

    53 kW
    (73 SAE-PS)
    at 5000

    63 kW
    (86 SAE-PS)
    at 4600

    41 kW
    (56 SAE-PS)
    at 3800

    Max. Torque at 1 / min:

    112 Nm at 2400

    150 Nm at 1800

    121 Nm at 2200

    Compression:

    8.3: 1

    8.0: 1

    21.0: 1

    Fuel supply:

    1 downdraft double carburetor

    Diesel injection pump

    Valve control:

    Hanging valves, rocker arms, side camshaft

    Cooling:

    water cooling

    Transmission:

    Semi-synchronized 4-speed gearbox,
    rear wheel drive steering wheel circuit

    Front suspension:

    two unequal length wishbones, coil springs

    Rear suspension:

    Rigid axle, semi-elliptic leaf springs

    brakes:

    Drum brakes all around

    Steering:

    Recirculating ball steering

    Body:

    Sheet steel, self-supporting

    Track front / rear:

    1340/1360 mm

    Wheelbase:

    2530 mm

    Dimensions:

    4485 × 1690 × 1490-1500 mm

    4440 × 1690 × 1540 mm

    Empty weight:

    1170 kg

    1190-1220 kg

    1230

    1330 kg

    maximum speed:

    132 km / h

    136 km / h

    106 km / h

    95 km / h

    0-100 km / h:

    n / A

    Consumption (liters / 100 kilometers):

    about 9.5 N

    about 10.0 N

    about 8.0 D



Service

  •  Isuzu Bellel Service Guide (1962-1967)



    Gearbox oil: 3.87 imp pt, 4.65 US pt, 2,2 1, SAE 90, change every 11,200 miles, 18,000 km
    Final drive oil: 2.11 imp pt, 2.54 US pt, 1.2 1, SAE 90-140, change every 11,200 miles, 18,000 km
    Greasing: every 1,900 miles, 3,000 km, 17 points
    Tyre pressure (medium load): front 24 psi, 1.7 atm, rear 24 psi, 1.7 atm.

    Carrying capacity: 1,058 1b, 480 kg.

    Fuel tank capacity: 10.3 imp gal, 12.4 US gal, 47 1.

    2000 Diesel engine
    Fuel: Diesel oil
    Engine oil change: 7.92 imp pt, 9.51 US pt, 4.5 1, SAE 20-30, change every 1,900 miles, 3,000 km
    Total lubricating system capacity: 8.80 imp pt, 10.57 US pt
    Cooling system capacity: 15.84 imp pt, 19.03 US pt
    Tappet clearances: inlet 0.020 in, 0.50 mm, exhaust 0.020 in, 0.50 mm
