Motor Cars
South Korea
2000s 2010s

Hyundai Elantra 3rd generation (XD)

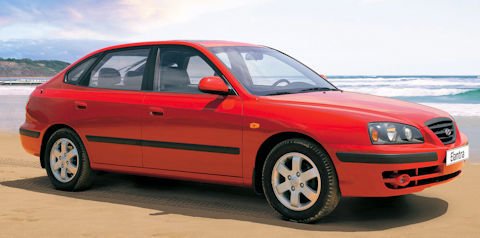

Hyundai Elantra 3rd generation (XD) specifications

Production period:

2000 TO 2016

Body versions :

Sedan , station wagon

Engines:

Gasoline  : 1.6-2.0 liters (77-105 kW)
Diesel  : 2.0 liters (83 kW)

Length:

4520-4525 mm

Width:

1720-1725 mm

Height:

1425 mm

Wheelbase :

2610 mm

Curb weight :

1253-1432 kg


The Hyundai Elantra entered in the summer of 2000, the successor to the Hyundai Lantra . Elantra Available in 4-door and 5-door editions offering the choice of 1.6, 1.8, 2.0 DOHC and 2.0 CRDi engine.

In Europe, the two predecessor generations ran under the name Lantra , as Lotus Cars wanted to exclude buyers from a mental link between Elantra and his model Elan . Although the production of which ended in 1992, it remained in the naming until 1996, the entire Elan production line was sold to the former Hyundai-Kia competitors that the Kia Elan roadster made to 1999 After its merger with Hyundai received in mid-2000 Elantra generation also in Europe this name.

The Elantra was only available as a hatchback or notchback sedan . There was no estate version of this anymore, but in April 2001, the compact van Hyundai Matrix was presented as a replacement.

In the autumn of 2003, the Elantra received a facelift to the XD2 and was three years later, Hyundai's stylists gave the  Elantra a sportier appearance. Headlanps, the radator grille, the hood-line and front had all been freshened up updated rear and trunk lid and new rear spoiler. in the fall of 2006, deleted in Europe from the model range. Until the introduction of the i30 in the summer of 2007, therefore, the Accent filled the area between small cars ( Getz ) and middle class ( Sonata ). Hyundai Variable Valve Timing a standard feature on all  North American (and Australia GLS) spec models.Inside revised upholstery large, bright gauges and LED trip computer.

In Russia, the Hyundai Elantra XD is still produced as a notchback. The manufacturer is TagAZ , which also produces its own vehicles. On the basis of the XD2 platform from 2003 later also the Kia Cerato , as well as with heavily modified form the Softroader Hyundai Tucson and Kia Sportage .

This generation of Elantra was the last available in Europe. The following are slightly reduced versions of the compact platform on which the i30 is currently based.

In China, the third generation was built untill 2014.

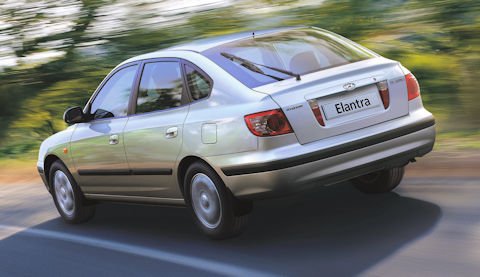

Hyundai Elantra 3rd Gen (2000-2014) Technical details Service Guide

Hyundai Previous 8 / 15 Next

Related

Related items
Hyundai Elantra | Vehicles launched in 2000

Technical

Technical
  •

    Transmissions
    5-speed manual
    4-speed automatic

    Fuel type Regular PETROL
    EPA city/highway, mpg 24/33
    Fuel refill capacity, 14.5gal

    Dimensions and weight
    Length, in. 177
    Width, in. 68
    Wheelbase. in. 103
    Curb weight, lb. .2,880
    Percent weight, front/rear  63/37
    Typical towing lb. 1,874


    Safety
    Center-rear belt Pretensioners, front/rear
    Antilock brakes. Optional
    Traction control. Optional

    Seatinq

    Front shoulder room, in. 54.5
    Front leg room, in. 50.5
    Rear shoulder room. in. 53.5
    Rear leg room, in. 28.5
    Rear head room. in. 2.0


    Engines

    engine

    cylinder

    power

    Max. Torque

    consumption

    transmission

    0-100 km / h

    construction

    1.6 gasoline

    4

    107 hp at 5800 min -1

    146 Nm at 3000 rpm

    7.4 l / 100 km
    8.2 l / 100 km

    5-speed manual
    4- speed automatic

    11.0 s


    2000-2003

    1.6 gasoline

    4

    105 hp at 5800 min -1

    146 Nm at 3000 rpm

    7.1 l / 100 km

    5-speed manual

    11.0 s

    2003-2006

    2.0 gasoline

    4

    139 hp at 6000 min -1

    182 Nm at 4900 rpm

    8.2 l / 100 km


    5-speed manual
    4-speed automatic

    9.1 s
    10.5 s

    2000-2003

    2.0 gasoline

    4

    143 hp at 6000 min -1

    186 Nm at 4500 rpm

    7.6 l / 100 km
    8.3 l / 100 km

    5-speed manual
    4-speed automatic

    9.1 s
    10.5 s

    2003-2006

    2.0 diesel

    4

    113 hp at 4000 min -1

    235 Nm at 1800 rpm

    6.4 l / 100 km

    5-speed manualn

    11.7 s

    2001-2006

    The petrol engines until autumn 2003 are certified to Euro 3, then they meet Euro 4. The diesel reached even after the revision, only the Euro 3 standard.

    -Note: More Specifications and Repair Manuals available for registered users-
