Engine data (JIS Net)
4-cylinder in-line
(72 x 76mm), 1238cm3
compression ratio 9.5:1
56kW (75hp) at 6500rpm, 45.2kW/L (60.6hp/L) 161.4PS/L1•, 98Nm (72.31bft) at 4000rpm.
Designated D12A
transverse front engine
4 valves per cylinder
1 overhead camshaft (toothed belt)
5 main bearing crankshaft
Oil capacity 4.2L (4US qt)
1 downdraught electronic controlled compound carb.
Battery 12 V 35/47Ah
alternator 35/45A
cooling system capacity approx 4.2L (4US).Transmission
to front wheels
a) 5-speed manual, final drive ratio 4.266.
b) Automatic, hydraulic torque converter and 4-speed Planetary gear set
final drive ratio 3.933.
Gear ratios:
a) 5-speed manual: 1st 3.181; 2nd 1.750; 3rd 1.166; 4th 0.852; 5th 0.710; R 2.916.
b) Automatic; Planetary gear set ratios: 1st 2.647; 2nd 1.480Body
front independent suspension with McPherson struts, antiroll bar
rear torsion crank axle (longitudinal tube Panhard rod and coil springs.Brakes
Servo/power brakes
front discs
rear drums
mechanical handbrake on rear wheelsSteering
rack and pinion steering
power assistedDimensions:
length 360.5cm
width 162cm
height 133.5cm.
Wheelbase 240cm
track 140/141cm
clearance 16cm
turning circle 9.2m
3-door, 5-seater
Fuel tank 40L (8.8Ga1) (10.6US Gal)
tyres 165/70 SR 12
wheel rims 4J.
kerbweight 700—720kg; heavier for automatic transmission by 10kg.
Factory codes- Type code:
- GA1 (1.2 l)
- GA2 (1.3 l)
- Engine Code:
- D12A (1.2 l)
- D13C (1.3 l)
Technical data
Honda City 1986-1990 GA1 (1.2 l) GA2 (1.3 l) versions BB, EE, GG CE, CE Fit, CG, CZ-i, CR-i engine type 4-cylinder inline engine, 16 valves, SOHC 4-cylinder inline engine, 16 valves, SOHC, PGM-FI capacity 1.2 liters (1237 cc) 1.3 liters (1296 cm³) power 56 kW (76 hp) at 6500 min -1 60 kW (82 hp) at 6500 min -1 Max. torque 98 Nm at 4000 min -1 103 Nm at 4000 min -1 top speed 150 km / h 170 km / h Acceleration (0-100 km / h) 13.0 s 12.2 s Empty weight in kg 680-720 (depending on the equipment) 730-820 (depending on the equipment) Tank capacity in l 42 Length / width / height in mm 3560/1620/1335 3605/1620/1335 Note:
All engines and full specifications available for registered users© Motor-car.net
Manuals

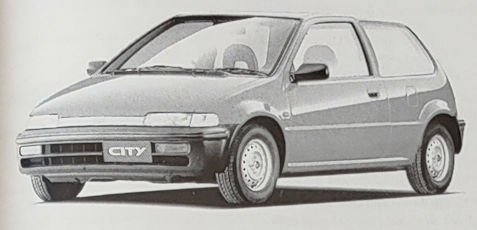

Honda City Second generation
 |
|
|---|---|
| Production period: | 1986 to 1990 |
| Body versions : | hatchback |
| Engines: | Gasoline : 1.2-1.3 liters (56-60 kW) |
| Length: | 3560-3605 mm |
| Width: | 1620 mm |
| Height: | 1335 mm |
| Wheelbase : | 2400 mm |
| Curb weight : | 680-820 kg |
The Honda City 2nd generation was equipped with a new engine and visually changed in many aspects. The front end was adapted to the then distinctive Honda face (see also Honda Civic G3 & G4), as well as the vehicle was taken a lot of height.
In this series renounced turbo or convertible variants, however, the city was equipped in 1989 with a larger and more powerful engine and built in this variant until 1990.
|
