Hino Contessa 900 first generation (PC10)
![]() | |
Sales period | 1961 to 1965 |
Class | Motor Car |
Drive system | RR |
engine | GP20 in-line 4-cylinder 893cc 35ps |
Wheelbase | 84.64 in, 2150 mm |
full length | 150.79 in, 3830 mm |
Width | 57.87 in, 1470 mm |
Height | 47.24 in, 1200 mm |
vehicle weight | 1543 1b, 700 kg |
The Hino Contessa 1st Generation 900 was a small Japanese car from the 1960s.
History

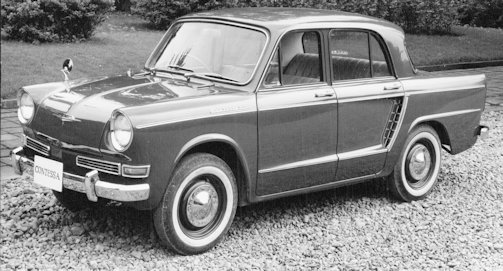

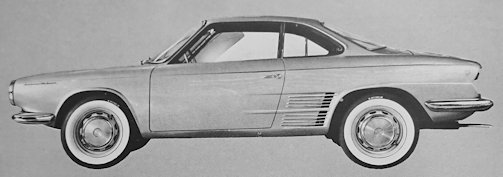

The Contessa 900 first appeared in 1961 equipped with an 893cc gasoline engine with an output of 35ps. It was at first only available as a 4-door sedan, and its 1960s styling features include no front grille, two round headlamps, side air intakes, and tail fins. In 1962, based on the Contessa 900, the two-door coupe Contessa 900 Sprint was announced with styling and coachwork by Giovanni Michelotti. Enrico Nardi was in charge of tuning the engine and suspension, and the maximum speed of 150km / h was planned from the engine that was raised to an estimated 45ps. Beginning with the Torino Motor Show in October of the same year, it was exhibited at overseas motor shows from the 1963 Geneva Auto Show to the New York International Auto Show, attracting much attention and admiration. Production in Italy was also planned. Although the announcement by Hino Motors that pressure from various European automakers, it was not commercially available in any numbers. While the 4-door saloon was well-received and led to many deliveries to the taxi industry.
The basic layout, such as the drive system and front suspension was independent, wishbones, anti-roll bar, with telescopic dampers at the rear independent, swinging semi-axles, longitudinal drive shaft, coil springs and telescopic dampers, distribution of weight was 35 % at front axle, and 65 % to the rear axle this followed the conventional Hino/Renault, and the displacement was an enlarged version of the Renault engine. As for its technical characteristics, it was equipped with an optional Shinko-Hinomatic electromagnetic automatic clutch, which realized a column shift even though it was a rear-engine car, thanks to the devising of the shift linkage.
The 900 sedan was produced until 1965,
PERFORMANCE:
- Engine capacity: 54.62 cu in, 893 cu cm
- Fuel consumption: 51.3 m/imp gal, 42.8 m/US gal
- Max speed: 87.0 mph, 140 km/h
- Max power (DIN): 45 hp at 5500 rpm
- Max torque (DIN): 47 1b ft, 6.5 kg. at 3200 rpm
- Max number of engine rpm: 5500
- Specific power: 50.4 hp/l
- Power-weight ratio: 34.2 hp/lb, 15.5 kg/hp
- Acceleration: standing 1/4 mile 24.2 sec, 0-60 mph (0—80 km/h) 19.6 sec
- Max speed in 1st gear: 27.9 mph, 45 km/h; max speed in 2nd gear: 55.9 mph, 90 km/h; max speed in 3rd gear: 87 mph, 140 km/h
Description
Technical
-
Hino Contessa 1st Gen 900 Technical details and specifications (1961-1965)
ENGINE:
location rear
4 stroke; cylinders: 4, vertical, in line
bore and stroke: 2.36 x 3.11 in, 60 x 79 m
engine capacity: 54.62 cu in, 893 cu cm
compression ratio: 8 : 1
cylinder block: cast iron, wet liners
cylinder head: light alloy
crankshaft bearings: 3
valves: 2 per cylinder, overhead, in line, with push rods and rockers
camshaft: 1, side
lubrication: rotary pump, filter on by-pass
carburation: 1 Hitachi-Solex VAF 28 downdraft single barrel carburettor
fuel feed: mechanical pump
cooling system: waterTRANSMISSION:
driving wheels: rear
clutch: single dry plate
gear box: mechanical; gears: 3 -F reverse
synchromesh gears: 2nd,3rd
gear box ratios: (1st) 3.70, (2nd) 1.81,(3rd) 1.07, (Rev) 3.70
gear lever location: central
final drive: spiral bevel
ratio: 4.62 : 1.
(Optional) Shinko-Hinomatic electromagnetic automatic clutch.CHASSIS:
type integral
front suspension: independent, wishbones, anti-roll bar, telescopic dampers
rear suspension: independent, swinging semi-axles, longitudinal drive shaft, coil springs, telescopic dampers.STEERING:
rack-and-pinion
turns of steering wheel lock to lock: 4.
turning radius (between walls): 15.0 ft, 4.6 mBRAKES:
front disc, rear drum.ELECTRICAL EQUIPMENT:
voltage: 12 V
battery: 40 Ah
dynamo: 250 W
ignition distributor: Sawafuji
headlights: 2 front and reversing.DIMENSIONS AND WEIGHT:
wheel base: 84.64 in, 2150 mm
front track:47.64 in, 1210 mm
rear track: 47.24 in, 1200 mm
overall length: 150.79 in, 3830 mm
overall width: 57.87 in, 1470 mm
overall height: 47.24 in, 1200 mm
ground clearance: 8.07 in, 205 mm
dry weight: 1543 1b, 700 kg
distribution of weight: 35 0/0 front axle, 65 0/0 rear axle© Motor car History
-
Hino Contessa 1st Gen 900 Maintenance and Service Guide (1961-1965)
fuel: petrol, 90-95 Oct
engine sump oil: 1.8 imp qt.2.1 US qt, 2 1, SAE 20 (winter) 30 (summer), change every 6000 miles 9600 km
gearbox oil: 3.5 imp qt, 4.2 US qt, 4 1, SAE 80, change every 6000 miles, 9600 km
cooling system capacity: 4.4 imp qt, 5.3 US qt
greasing: every 3000 miles, 4800 km, 11 points
tappet clearances: inlet 0.009 in, 0.23 mm, exhaust 0.012 in, 0.30 mm
valve timing: (inlet) opens 10° after tdc and closes 30° after bdc, (exhaust) opens 50° before bdc and closes 10° after tdc
tyre pressure (normal load): front 14 psi rear 26 psi
width of rims: 4";
tyres: 5.50 - 14
fuel tank capacity: 7.04 imp gal,8.45 US gal
load: 706 1b, 320 kg© Motor car History
