Motor Cars
USA
2000s

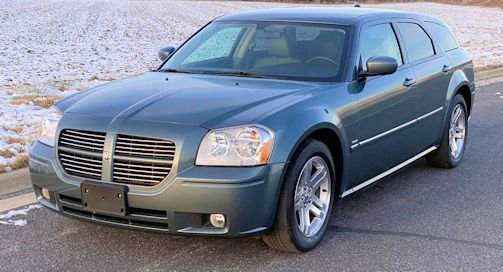

Dodge Magnum Second Generation

Dodge Magnum 2nd gen (2004-2008)

Model years

2005–2008

Assembly

Canada

Class

Motor Car

Body style

5-door station wagon

Layout

Front engine, rear / four-wheel drive

Platform

Chrysler LX platform

Engine

2.7 L (167 cu in) EER V6
3.5 L (215 cu in) EGG V6
5.7 L (345 cu in) EZB HEMI V8
6.1 L (370 cu in) ESF HEMI V8

Transmission

4-speed 42RLE automatic
5-speed W5A580 automatic

Wheelbase

120.0 in (3,048 mm)

Length

197.7 in (5,022 mm)

Width

74.1 in (1,882 mm)

Height

2005-07: 58.4 in (1,483 mm)
2008: 58.3 in (1,481 mm)
SRT8: 57.9 in (1,471 mm)



 Dodge Magnum is the name of two cars  of the US car manufacturer Dodge .In 2004, Dodge began producing a new model, which was again named Magnum . In contrast to the namesake from the 1970s, the current Magnum is a station wagon .

Since its creation in 2005, the Magnum has attracted all kinds of comments. The "smoke show", but others may treat it as an enemy of Greenpeace with its large engines.

One thing is certain; this car has a very strong personality and robustness. The secret of the success of the Magnum is based on this hot-rod key power from the past. The tinted windows, the wheels of 17-, 18- or 20-inches command respect. In addition, the dials on a white background contrast with black coverings. very 1970s, The only downside: the quality of the plastic, rather unpleasant to the touch, could be improved and makes It looks a bit low-end.

In Europe, the Dodge Magnum was marketed by DaimlerChrysler as Chrysler 300C touring . It is offered in the following displacement variants:

  • SE : 2.7 Liters with 140 kW / 190 hp
  • SXT : 3.5 Liters with 253 hp
  • R / T : 5.7 Liter HEMI with 250 kW / 340 hp
  • SRT8 : 6.1 litres HEMI with 313 kW / 425 hp

There are the versions SXT and R / T since 2005 also with all-wheel drive (and optionally with four-speed or five-speed gearbox). For the model year 2008, the Magnum received a facelift. The gearbox and many engine parts come from the Mercedes-Benz W210 , from which the vehicle platform was also taken over.

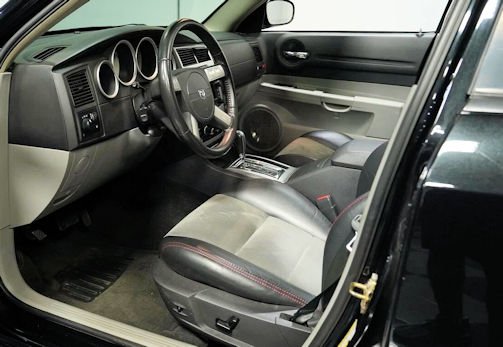

INTERIOR From the outside, its roof  line lack of clearance. but it is only an optical illusion, In fact its High. With superior soundproofing and a longer wheelbase than that of a  European Mercedes S-Class and a BMW 7 Series. And space loading is huge.
The options range from the navigation automatic climate control including leather upholstery. A good audio system with a six-CD magazine and enough power.

Standard Track Pack (SRT8),
Rear Entertainment with Optional DVD,
transmission oil change reminder
automatic, electrically adjustable pedals (R/T),
Available 18-inch and 20-inch chrome wheels

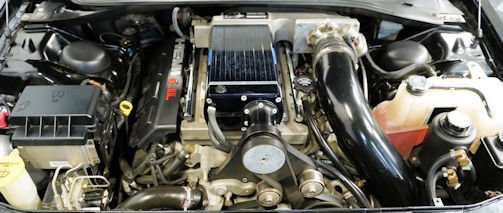

MECHANICS Here we are at the heart of what is the appeal of this vehicle.
For the SE version with V6 engine from 190 horsepower is indicated, but the SXT version, with the 3.5-liter V6 and 250 horsepower, is the best compromise between power, driving pleasure and an Acceptable consumption. The V6s are equipped with an automatic gearbox

Dodge Magnum Technical details specifications

 Next the big guns with the HEMI engines. The R/T version offers 340 horsepower, a 100 km/h start stopped in less than 6.5 seconds, and a mechanical symphony that makes you shiver of pleasure every acceleration. Fitted with system for disabling cylinders in the HEMI V8 of 5.7 litres, which allows the Magnum to run on four Cylinders cruising speed on the road, authorizing a better Fuel economy of approximately 10%.  Chassis and suspension are well calibrated.
However, a full-on propulsion drive becomes a real problem in winter, all the more so as the stability control is worth nothing in the snow. But there is plus, if you can afford it: the Magnum SRT8 with its HEMI  and its 425 horsepower and five gears with HEMI motors.. With power delivered in A loud debauchery makes the hairs stand on end of the arms. A real beast that accelerates as fast aa the  Porsche 911 or a Corvette, but unlike these you still have  room for all your grocery in the back!

In the US, the Magnum is no longer offered, since the sales figures were below the expectations last.

Related items
Dodge Magnum | Vehicles launched in 2004 | American 2000s

Technical

Technical
  • (SE)
    DOHC 190 hp 6400 rpm
    Torque: 190 lb-ft 4000 rpm
    Transmission:
    4-speed automatic
    Top speed: 210 km/h
    (SXT)
    V6 250 ci
    Torque 250 lb.ft 3800 rpm
    Transmission: 5-speed automatic with manual mode
    0-100 km/h: 8,7 s. AWD 9,2s
    Maximum speed: 210 km/h
    (R/T)
    V8 5,.7 l
    390 lb•pi at 4000 r/min
    Transmission: 5-speed automatic with manual mode
    0-100 km/h: 6.4 s
    Maximum speed: 210 km/h
    (SRT8)
    V8 6.1 l
    420 lb•pi at 4800 r/min
    Transmission: 5-speed automatic,
    0-100 km/h s 5.3s
    Maximum speed: 250 km/h


    Features
    Active Safety
    ABS brakes
    electronic force distribution braking
    traction control
    Stability control electronics

    Front/rear suspension
    Independent

    Front/Rear Brakes
    Discs

    Steering
    rack-and-pinion, assisted


    DIMENSIONS
    Wheelbase: 3048 mm
    Length: mm
    Width: 1881 mm
    Height: 1481 mm


    Turning Circle
    11.9m 4wd 11.8m

    Trunk:
    770l or 2030l (seats lowered)

    Fuel tank:
    68l
    SRT8: 72l

    -Note: More Specifications and Repair Manuals available for registered users-
