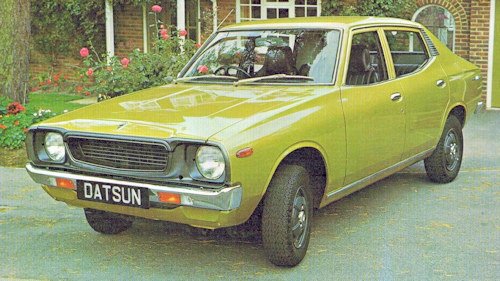

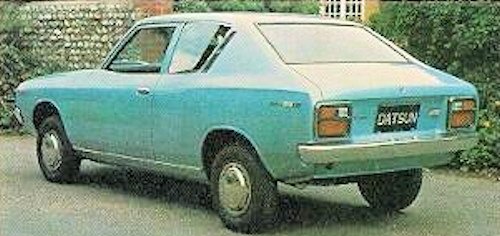

Datsun Cherry 2nd generation F 10

Datsun Cherry 2nd generation F10 F II

Production:

1974-1978

Body versions :

sedan , station wagon ,coupé

Engines:

Gasoline : 1.0-1.4 liters

Length:

3825 mm

Width:

1500 mm

Height:

1375 mm

Wheelbase :

2395 mm

Curb weight :

700-755 kg

The Datsun Cherry 2nd generation was a small japanese car known models as from 1974 to 1978 F10 and F II, 100A / 120A F-II, 210 around the world.

History

The successor Cherry F-II (F10) launched in September 1974 in the home market. Technically, the F-II is based on the E10 and the design was a little "baroque" designed. The design is only accepted cautiously on the export markets, which is why the export of its predecessor is continued, partly in parallel with the new model.

The extremely successful line of 1-litre economy cars from powered by the world famous 988cc. engine that drives the front wheels and gives a top speed
well into the 80's, with lively acceleration and around 40m.p.g. in normal driving. Steering is precise rack and pinion, suspension coil springs and fully independent. For a car of this class, the equipment is quite outstanding, even power-assisted brakes and tinted glass being included in the standard specification. Add reclining frontseats, two waveband push button radio, heated rear window, hazard flashers, twin automatic reversing lights, cigar lighter, door mirror, radial tyres etc.

In the basic design and model selection, hardly anything had changed. The vehicles were slightly larger, as they were now offered in North America as Datsun 210 (coupe and wagon only). Therefore, a 1.4-liter engine of the A-series was installed, which made 59 kW / 80 hp.

In New Zealand , the model was manufactured as a four-door sedan 100A with the 1.0-liter engine from supplied parts kits . It was then the model with the smallest engine on the market, even the Morris Mini had with 998 cm² more displacement. It was built here until the end of 1980, until the production of the Cherry N10 hatchback model began.

At the end of 1975, a facelift brings, among other things, modified wheel suspensions and new wheel covers.The Cherry F-II was presented in January 1977 with redesigned interiors and headlights.

Datsun Cherry 2nd generation F 10

Categories
Datsun | Nissan
Title
Datsun Cherry 2nd gen F10 (1974 to 1978)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
Japanese Vehicles from 1970s | Vehicles launched in 1974

Technical

Technical
  • Datsun Cherry 2nd gen F10 technical details and specifications (1974 to 1978)

    Engine

    Type Transverse 4 Cylinder in line OHV, water cooled
    Bore : 73 mm
    Stroke : 59 mm
    Capacity : 988cc
    Max. Power, bhp/rpm (DIN): 45/5600
    Max. Torque, lb. ft./rpm (DIN): 55.7/4000
    Compression ratio: 9.0:1
    Fuel pump: Mechanical
    Carburettor: Dual barrel, down draft type
    Gearbox: Manual 4 speed all-synchromesh
    Clutch: Diaphragm spring-mechanical operation

    Suspension Brakes

    Front: Independent by coil springs and damper struts with lower wishbones, anti-roll bar.
    Rear: Independent, by trailing arms with coil springs
    Steering: Rack and pinion, 3.2 turns lock to lock
    Wheels/ Tyres: 4 1/2 J Steel 155SR 12 Radial Tyres
    Brakes: Servo assisted. Front, disc Rear, drum

    Dimensions & Weights

    Overall height: 52.8 ins.
    Overall length: 150.6 ins.
    Overall width: 59.1 ins.
    Wheelbase: 94.3 ins.
    Track, Front 50.2 ins. Rear 48.8 ins.
    Kerb Weight: 1620 lbs



Service
  • Datsun Cherry 2nd gen F10 Service (1974 to 1978)

    Service & Capacities
    Fuel: 8.8 galls.
    Engine Oil: 5.8 pints.
    Gearbox Oil: 4.0 pints.
    Service interval 6000 miles.
