Motor Cars
Worldwide
2010s

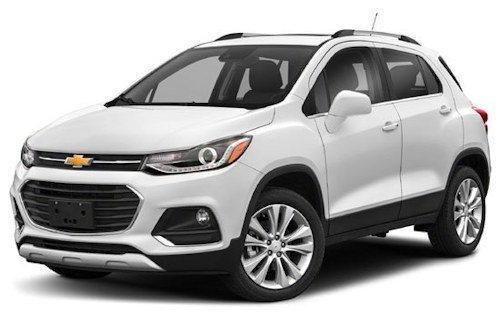

Chevrolet Trax

Chevrolet Trax history

Production period:

since 2013

Class :

motor car

Body versions :

SUV station wagon

Engines:

Gasoline : 1.4-1.6 liters (85-103 kW)
Diesel : 1.7 liters (96 kW)

Length:

4248-4255 mm

Width:

1766-1776 mm

Height:

1674-1687 mm

Wheelbase :

2555 mm

Curb weight :

1290-1490 kg



The Chevrolet Trax is a compact crossover - SUV from General Motors , that of Chevrolet was introduced in most countries in April, 2013.

History

The car is based on the same platform ( Gamma II platform ) as the since October 2012 available Opel Mokka and its twin Buick Encore . In Australia and Oceania it is sold by the car brand Holden as Holden Trax . In South America and Russia  the car is under the name Chevrolet Tracker.

A concept car of the same name was presented at the New York International Auto Show (NYIAS) 2007. With the series model has this design study except the name and the model positioning as a small SUV, however, little in common.

In autumn 2012, the Trax was formally presented at the Mondial de l'Automobile . In Canada, the car will be offered as the first compact Chevrolet SUV.

The development center of Holden has optimized the chassis of the Trax "for more than 20 markets" including "Australia, Russia, South Africa and New Zealand".

The model name "Tracker" used in South America is reminiscent of the GM versions of the Suzuki Vitara and Suzuki Grand Vitara , which were used as trackers under different brand names from 1989 to 1991 and from 1999 to 2008 in South and North America (Chevrolet, GMC, Asüna, Geo) were sold.

In Europe, the vehicle is no longer available since the cessation of vehicle sales of Chevrolet in 2014;  in North America, it was the model 2017 a facelift , which at the Chicago Auto Show was shown in 2016 formally for the first time.

In autumn 2016, based on the facelift version at the SEMA Show, a concept vehicle with extended terrain planking under the name "Chevrolet Trax Activ Concept" was shown.

When Euro NCAP - Crash Test  and the US NCAP -Crashtest , the vehicle received a total score of five stars. In the crash test conducted by the IIHS  it was rated "Good" in the "Moderate front overlap" attempt.

There were four equipment variants in Austria (LS, LS +, LT, LT +) and three engines (1.6-liter gasoline engine , 1.4-liter gasoline engine with turbocharging , 1.7-liter diesel engine with turbocharging) to choose from.



Related items
SUV | Vehicles launched in 2013

Technical

Technical
  • Chevrolet Trax Technical data  (2013-)

    parameters

    1.6 MT

    1.4T MT AWD

    1.7TD MT

    1.7TD MT AWD

    1.7TD AT

    Construction period

    since 04/2013

    Engine type

    gasoline engine

    diesel engine

    engine type

    R4

    mixture preparation

    manifold injection

    Common rail direct injection

    engine charging

    -

    turbocharger

    capacity

    1598 cc

    1364 cc

    1686 cc



    Max. power

    85 kW (115 hp)
    at 6200 rpm

    103 kW (140 hp)
    at 4900-6000 / min

    96 kW (130 hp)
    at 4000 rpm



    Max. torque

    155 Nm
    at 4000 rpm

    200 Nm
    at 1850-4900 / min

    300 Nm
    at 2000 rpm



    Drive, standard

    front-wheel drive

    all wheel drive

    front-wheel drive

    all wheel drive

    front-wheel drive



    Gearbox, standard

    5-speed manual transmission

    6-speed manual transmission

    6-speed manual transmission

    6-speed automatic transmission



    top speed

    173 km / h

    194 km / h

    186 km / h

    183 km / h



    Acceleration,
    0-100 km / h

    12.3 s

    9.8 s

    9.6 s

    9.4 s

    10.5 s



    Fuel consumption
    to 100 km, combined

    6.5 l super

    6,4 l super

    4.5 l diesel

    4.9 liters of diesel

    5.3 l diesel



    CO 2 emission, combined

    153 g / km

    149 g / km

    120 g / km

    129 g / km

    139 g / km



    Emission standardaccording to
    EU classification

    5 euro



    Holden Trax Technical data (Australia)

    parameters

    1.8 MT

    1.4T AT

    Construction period

    since 2017

    Engine type

    gasoline engine

    engine type

    R4

    mixture preparation

    manifold injection

    engine charging

    -

    turbocharger

    capacity

    1796 cm³

    1364 cc

    Max. power

    103 kW (140 hp)
    at 6200 rpm

    103 kW (140 hp)
    at 4900-6000 / min

    Max. torque

    178 Nm
    at 3800 rpm

    200 Nm
    at 1850-4900 / min

    Drive, standard

    front-wheel drive

    front-wheel drive

    Gearbox, standard

    5-speed manual transmission

    6-speed automatic transmission

    top speed

    180 km / h

    191 km / h

    Acceleration,
    0-100 km / h

    10.9 s

    10.7 s

    Fuel consumption
    to 100 km, combined

    7.0 l super

    6.9 l super

    CO 2 emission, combined

    164 g / km

    160 g / km

    Emission standard according to
    EU classification

    5 euro
