Britain
Sports Cars
1990s

Westfield ZEi

Westfield ZEi

Manufacturer

Westfield Sportscars

Production

1993 to 1999

Class

Sports car

Layout

FR layout

Engines

Ford zetec, Ford YB Cosworth

Transmission

MT75

Length

145.75/3702 mm

Width

64.0ins/1625 mm

Height

41.5ins/1054 mm

Ground Clearance

4.5ins/114 mm

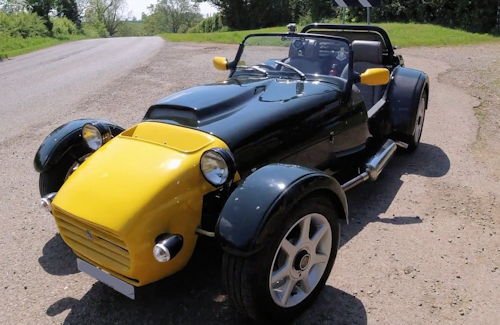

This Westfield ZEi was a open sports car built by Westfield Sportscars in the 1990s,as the W 130 Zetec Also ZEi 220 version was also avalable with the legedary cosworth 2 litre turbo engine

History

Westfield Sportscars Ltd. is a British sports car and kit car manufacturer .Sports cars have been developed and sold by the company since 1983
The Westfield marque has gained an enviable reputation for superb handling cars.particularly based on the design of the Lotus 7 .

The Westfield ZEi is a low volume facory built car with its roots firmly in the days of the great British sports car tradition.In a world dominated by hot hatches and their convertible derivatives the ZEi brings a breath of fresh air to open air motoring.

The unique all - independent suspension set up of the ZEi is fully adjustable, and allied to the complex multi tube spaceframe chassis .
and is both safe and yet possessed with remarkable traction through bends that would have other so called sportscars struggling for adhesion. Braking is taken care of by four wheel disc brakes all round.

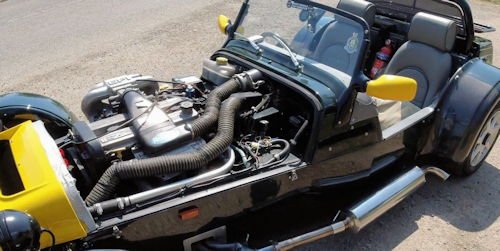

Westfield had chosen the new 16 valve, 130 ps, DOHC 1.8 litre power unit Ford Zeta engine.The engine is Ford 1800 Zeta Zetec engine 1796cc with 130 hp at 6,250rpm, 120 lb ft at 4,250 rpm and zero to 60 mph in 5.8 seconds.Environmentally friendly, the engine features fuel injection and catalytic converter and, of course, runs on unleaded fuel.

Westfield ZEi

This engine driving through the MT75 five speed gearbox and is RWD,with LSD and 14” wheels and 185/60/14 tyres with 6 X 14 Rimstar alloy wheels adjustable Spax shock absorbers. The car has power and flexibility throughout its range and delivers the performance, reliability and durability for which Ford have an unrivalled reputation. Brakes are discs all round – 250mm front, and 240mm rear

Each Westfield ZEi is hand built at the factory and is backed which ensures that each car leaving the factory is built to the highest possible standards.being manufactured from composite materials and the chassis is epoxy coated for corrosion resistance.

On the inside, the ZEi features adjustable seats, a complete range of analog instruments as well as luggage space provided by the boot box.
The basic specification includes all the right ingredients that you would expect to find in a car with the sporting pedigree of a Westfield;
Inertia reel seatbelts, electric cooling fan, chrome halogen headlights and of course a leather covered steering wheel with crash pad, two speed wipers, wing mirrors etc.

The ZEi comes in a choice of seven colours with a choice of interiors in either vinyl as standard or leather as an option.

Westfield ZEi specs



Categories
Westfield
Title
Westfield ZEi (1993-1999)

Description

Have you Say: Rate this
Overall Vote
100% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
Video | British Automotive 1990s | Lotus 7 related | British Sports cars | Roadster | Sports Cars

Technical

Technical
  • Westfield ZEi Specifications (130)

    ENGINE - FORD ZETEC (ZETA) DOHC
    CYLINDERS - FOUR IN LINE
    VALVES - 16 V FOUR PER CYLINDER DOHC
    CYLINDER BLOCK - CAST IRON
    FUEL SYSTEM - ELECTRONIC SEQUENTIAL INJECTION
    FUEL VAPOUR RECOVERY SYSTEM - ACTIVATED CHARCOAL CANISTER
    DISPLACEMENT - 1796 cc
    BORE X STROKE - 80.6mm x 88mm
    COMPRESSION RATIO - 10:1
    CYLINDER HEAD ALUMINUM ALLOY - SUMP PAN CAST ALUMINUM
    OIL CAPACITY - 4.25 LITRES INCLUDING FILTER
    FUEL - PETROL 95 OCTANE UNLEADED
    EXHAUST CONTROL - THREE WAY CATALYST
    CONTROL SYSTEM - EEC 1V ELECTRONIC MANAGEMENT
    MAX POWER (PS) - 130 PS @ 6250 RPM
    MAX TORQUE (DIN) - 162 Nm @ 4240 RPM

    WHEELS 6 X 14 RIMSTAR ALLOYS - TYRES 185 X 60 X 14
    FRONT SUSPENSION - INDEPENDANT WISHBONES WITH COIL SPRING SHOCKS
    REAR SUSPENSION - INDEPENDANT WISHBONES WITH COIL SPRING SHOCKS
    STEERING - RACK AND PINION

    BRAKES - DISC BRAKES ALL ROUND
    FUEL TANK CAPACITY - 6.25 GALLONS

    WHEELBASE - 2335 mm
    TURNING CIRCLE - 32.5 FEET
    FRONT TRACK - 59.5ins/1511 mm
    REAR TRACK - 62.0ins/1574 mm
    WHEELBASE - 93.0ins/2362 mm

    OVERALL LENGTH - 145.75/3702 mm
    OVERALL WIDTH - 64.0ins/1625 mm
    MAX HEIGHT - 41.5ins/1054 mm
    GROUND CLEARANCE - 4.5ins/114 mm
