Car Road surfaces explained

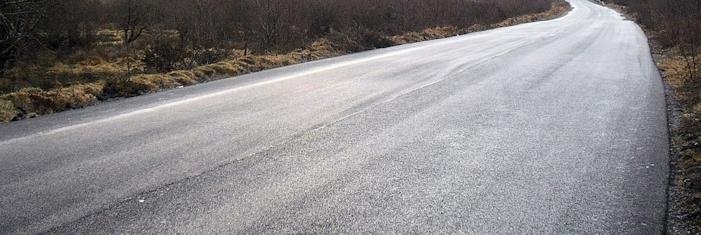

Road surface is the durable surface material laid down on an area intended to sustain vehicular or foot traffic, such as a road or walkway. In the past gravel road surfaces, cobblestones and granite setts were extensively used, but these surfaces have mostly been replaced by asphalt or concrete. Such surfaces are frequently marked to guide traffic. Today, permeable paving methods are beginning to be used for low-impact roadways and walkways.
Asphalt (specifically, asphalt concrete) has been widely used since the 1920s. The viscous nature of the bitumen binder allows asphalt concrete to sustain significant plastic deformation, although fatigue from repeated loading over time is the most common failure mechanism. Most asphalt surfaces are laid on a gravel base, which is generally at least as thick as the asphalt layer, although some 'full depth' asphalt surfaces are laid directly on the native subgrade. In areas with very soft or expansive subgrades such as clay or peat, thick gravel bases or stabilization of the subgrade with Portland cement or lime may be required. Polypropylene and polyester geosynthetics have also been used for this purpose and in some northern countries, a layer of polystyrene boards have been used to delay and minimize frost penetration into the subgrade.
Depending on the temperature at which it is applied, asphalt is categorized as hot mix asphalt (HMA), warm mix asphalt, or cold mix asphalt. Hot mix asphalt is applied at temperatures over 300°F (150°C) with a free floating screed. Warm mix asphalt is applied at temperatures of 200–250°F (95–120°C), resulting in reduced energy usage and emissions of volatile organic compounds Cold mix asphalt is often used on lower volume rural roads, where hot mix asphalt would cool too much on the long trip from the asphalt plant to the construction site.
An asphalt concrete surface will generally be constructed for high volume primary highways having an Average Annual Daily Traffic load higher than 1200 vehicles per day. Advantages of asphalt roadways include relatively low noise, relatively low cost compared with other paving methods, and perceived ease of repair. Disadvantages include less durability than other paving methods, less tensile strength than concrete, the tendency to become slick and soft in hot weather and a certain amount of hydrocarbon pollution to soil and groundwater or waterways.
In the 1960s, rubberized asphalt was used for the first time, mixing crumb rubber from used tires with asphalt. While a potential use for tires that would otherwise fill landfills and present a fire hazard, rubberized asphalt has shown greater incidence of wear in freeze-thaw cycles in temperate zones due to non-homogeneous expansion and contraction with non-rubber components. Also, application of rubberized asphalt is more temperature-sensitive, and in many locations can only be applied at certain times of the year.
Study results of the long-term acoustic benefits of rubberized asphalt are inconclusive. Initial application of rubberized asphalt may provide 3-5 decibels (dB) reduction in tire-pavement source noise emissions; however, this translates to only 1-3 decibels (dB) in total traffic noise level reduction (due to the other components of traffic noise). Compared to traditional passive attenuating measures (e.g., noise walls and earth berms) rubberized asphalt provides shorter-lasting and lesser acoustic benefits at typically much greater expense.
Concrete surfaces (specifically, Portland cement concrete) are created using a concrete mix of Portland cement, coarse aggregate, sand and water. In virtually all modern mixes there will also be various admixtures added to increase workability, reduce the required amount of water, mitigate harmful chemical reactions and for other beneficial purposes. In many cases there will also be Portland cement substitutes added, such as fly ash. This can reduce the cost of the concrete and improve its physical properties. The material is applied in a freshly mixed slurry, and worked mechanically to compact the interior and force some of the cement slurry to the surface to produce a smoother, denser surface free from honeycombing. The water allows the mix to combine molecularly in a chemical reaction called hydration.
Concrete surfaces have been refined into three common types: jointed plain (JPCP), jointed reinforced (JRCP) and continuously reinforced (CRCP). The one item that distinguishes each type is the jointing system used to control crack development.
Jointed Plain Concrete Pavements (JPCP) contain enough joints to control the location of all the expected shrinkage cracks. The concrete cracks at the joints and not elsewhere in the slabs. Jointed plain pavements do not contain any steel reinforcement. However, there may be smooth steel bars at transverse joints and deformed steel bars at longitudinal joints. The spacing between transverse joints is typically about 15 feet (4.6 m) for slabs 7 to 12 inches (180 to 300 mm) thick. Today, a majority of the U.S. state agencies build jointed plain pavements.
Jointed Reinforced Concrete Pavements (JRCP) contain steel mesh reinforcement (sometimes called distributed steel). In jointed reinforced concrete pavements, designers increase the joint spacing purposely, and include reinforcing steel to hold together intermediate cracks in each slab. The spacing between transverse joints is typically 30 feet (9.1 m) or more. In the past, some agencies used a spacing as great as 100 feet (30 m). During construction of the interstate system, most agencies in the Eastern and Midwestern U.S. laid jointed-reinforced pavement. Today only a handful of agencies employ this design, and its use is generally not recommended as JPCP and CRCP offer better performance and are easier to repair.
Continuously Reinforced Concrete Pavements (CRCP) do not require any transverse contraction joints. Transverse cracks are expected in the slab, usually at intervals of 3 to 5 ft (0.91 to 1.5 m). CRCP pavements are designed with enough steel, 0.6–0.7% by cross-sectional area, so that cracks are held together tightly. Determining an appropriate spacing between the cracks is part of the design process for this type of pavement.
Continuously reinforced designs may cost slightly more than jointed reinforced or jointed plain designs due to increased quantities of steel. Often the cost of the steel is offset by the reduced cost of concrete because CRCP is nearly always significantly thinner then a JPCP designed for the same traffic loads. Properly designed JPCP and CRCP should demonstrate similar long-term performance and cost-effectiveness. A number of agencies have made policy decisions to use CRCP designs in their heavy urban traffic corridors.
One of the major advantages of concrete pavements is they are typically stronger and more durable than asphalt roadways. They also can be grooved to provide a durable skid-resistant surface. A notable disadvantage is that it can typically have a higher initial cost, as well as can be more time consuming to construct. This cost can typically be offset through the long life cycle of the pavement. Concrete pavement can be maintained over time utilizing a series of methods known as CPR (Concrete Pavement Restoration) which includes diamond grinding, dowel-bar retrofits, joint and crack sealing, cross-stitching, etc. Diamond grinding is also useful in reducing noise and restoring skid resistance in older concrete pavement.
The first street in the United States to be paved with concrete was Court Avenue in Bellefontaine, Ohio in 1891. The first mile of concrete pavement in the United States was on Woodward Avenue in Detroit, Michigan in 1909.
Composite surfaces combine Portland cement concrete and asphalt. They are usually used to rehabilitate existing roadways rather than in new construction.
Asphalt overlays are sometimes laid over distressed concrete to restore a smooth wearing surface. A disadvantage of this method is that movement in the joints between the underlying concrete slabs, whether from thermal expansion and contraction, or from deflection of the concrete slabs from truck axle loads, usually cause cracks, called reflective cracks in the asphalt.
To decrease reflective cracking, concrete pavement is sometimes "cracked and seated." A heavy weight is dropped on the concrete to induce cracking, then a heavy roller is used to seat the resultant pieces into the subbase. The theory is frequent small cracks will spread thermal stress over a wider area than infrequent large joints, reducing the stress on the overlying asphalt pavement.
Whitetopping uses Portland cement concrete to resurface a distressed asphalt road.
Bituminous surface treatment (BST) or chipseal is used mainly on low-traffic roads, but also as a sealing coat to rejuvenate an asphalt concrete pavement. It generally consists of aggregate spread over a sprayed-on asphalt emulsion or cut-back asphalt cement. The aggregate is then embedded into the asphalt by rolling it, typically with a rubber-tired roller. This type of surface is described by a wide variety of regional terms including "chip seal", "tar and chip", "oil and stone", "seal coat", "sprayed seal" or "surface dressing".
BST is used on hundreds of miles of the Alaska Highway and other similar roadways in Alaska, the Yukon Territory, and northern British Columbia. The ease of application of BST is one reason for its popularity, but another is its flexibility, which is important when roadways are laid down over unstable terrain that thaws and softens in the spring.
Other types of BSTs include micropaving, slurry seals and Novachip. These are laid down using specialized and proprietary equipment. They are most often used in urban areas where the roughness and loose stone associated with chip seals is considered undesirable.
Thin membrane surface
A thin membrane surface (TMS) is an oil treated aggregate which is laid down upon a gravel road bed producing a dust free road. A TMS road reduces mud problems and provides stone free roads for local residents where loaded truck traffic is negligible. The TMS layer adds no significant structural strength, and so is used on secondary highways with low traffic volume and minimal weight loading. Construction involves minimal subgrade preparation, following by covering with a 50 to 100 millimetres (2.0–3.9 in) cold mix asphalt aggregate. The Operation Division of the Ministry of Highways and Infrastructure in Saskatchewan has the responsibility of maintaining 6,102 kilometres (3,792 mi) of thin membrane surface (TMS) highways.
Otta seal is a low-cost road surface using a 16–30-millimetre (0.63–1.2 in) thick mixture of bitumen and crushed rock.
Gravel is known to have been used extensively in the construction of roads by soldiers of the Roman Empire (see Roman road) but a limestone-surfaced road, thought to date back to the Bronze Age, has been found in Britain. Applying gravel, or "metalling," has had two distinct usages in road surfacing. The term road metal refers to the broken stone or cinders used in the construction or repair of roads or railways, and is derived from the Latin metallum, which means both "mine" and "quarry". The term originally referred to the process of creating a gravel roadway. The route of the roadway would first be dug down several feet and, depending on local conditions, French drains may or may not have been added. Next, large stones were placed and compacted, followed by successive layers of smaller stones, until the road surface was composed of small stones compacted into a hard, durable surface. "Road metal" later became the name of stone chippings mixed with tar to form the road surfacing material tarmac. A road of such material is called a "metalled road" in Britain, a "paved road" in Canada and the USA, or a "sealed road" in Australia and New Zealand.
A granular surface can be used with a traffic volume where the average annual daily traffic is 1,200 vehicles per day or less. There is some structural strength as the road surface combines a sub base and base and is topped with a double graded seal aggregate with emulsion. Besides the 4,929 kilometres (3,063 mi) of granular pavements maintained in Saskatchewan, over 90% of New Zealand roads are unbound granular pavement structures.
The decision whether to pave a gravel road or not often hinges on traffic volume. It has been found that maintenance costs for gravel roads often exceed the maintenance costs for paved or surface treated roads when traffic volumes exceed 200 vehicles per hour
Some communities are finding it makes sense to convert their low volume paved roads to aggregate surfaces.
Pavers (or paviours), generally in the form of pre-cast concrete blocks, are often used for aesthetic purposes, or sometimes at port facilities that see long-duration pavement loading. Pavers are rarely used in areas that see high-speed vehicle traffic.
Brick, cobblestone, sett, and wood plank pavements were once common in urban areas throughout the world, but fell out of fashion in most countries, due to the high cost of labor required to lay and maintain them, and are typically only kept for historical or aesthetic reasons. In some countries, however, they are still common in local streets. Likewise, macadam and tarmac pavements can still sometimes be found buried underneath asphalt concrete or Portland cement concrete pavements, but are rarely constructed today.
Roadway surfacing choices are known to affect the intensity and spectrum of sound emanating from the tire/surface interaction. Initial applications of this knowledge occurred in the early 1970s. Roadway surface types contribute differential noise effects of up to four dB, with chip seal type and grooved roads being the loudest and concrete surfaces without spacers being the quietest. Asphaltic surfaces perform intermediately relative to concrete and chip seal. These phenomena are, of course, highly influenced by vehicle speed. Rubberized asphalt has been shown to give a marginal 3-5 dB reduction in tire-pavement noise emissions, and a marginally-discernible 1-3 decibel reduction in total road noise emissions when compared to conventional asphalt applications.
Natural Granite can also be used to create smooth paving that can be cut into various shapes.
Tactile Paving is commonly used in commercial paving to create a more non-slip style of paving.
As pavement systems primarily fail due to fatigue (in a manner similar to metals), the damage done to pavement increases with the fourth power of the axle load of the vehicles traveling on it. According to the AASHO Road Test, heavily loaded trucks can do more than 10,000 times the damage done by a normal passenger car. Tax rates for trucks are higher than those for cars in most countries for this reason, though they are not levied in proportion to the damage done.Passenger cars are considered to have no practical effect on a pavement's service life, from a fatigue perspective.
Other failure modes include aging and surface abrasion. As years go by, the binder in a bituminous wearing course gets stiffer and less flexible. When it gets "old" enough, the surface will start losing aggregates, and macrotexture depth increases dramatically. If no maintenance action is done quickly on the wearing course potholing will take place. If the road is still structurally sound, a bituminous surface treatment, such as a chipseal or surface dressing can prolong the life of the road at low cost. In areas with cold climate, studded tires may be allowed on passenger cars. In Sweden and Finland, studded passenger car tires account for a very large share of pavement rutting.
Several design methods have been developed to determine the thickness and composition of road surfaces required to carry predicted traffic loads for a given period of time. Pavement design methods are continuously evolving. Among these are the Shell Pavement design method, and the American Association of State Highway and Transportation Officials (AASHTO) 1993 "Guide for Design of Pavement Structures". A new mechanistic-empirical design guide has been under development by NCHRP (Called Superpave Technology) since 1998. A new design guide called Mechanistic Empirical Pavement Design Guide (MEPDG) was developed and is about to be adopted by AASHTO.
The physical properties of a stretch of pavement can be tested using a falling weight deflectometer.
Further research by University College London into pavements has led to the development of an indoor, 80-sq-metre artificial pavement at a research centre called Pedestrian Accessibility and Movement Environment Laboratory (PAMELA). It is used to simulate everyday scenarios, from different pavement users to varying pavement conditions. There also exists a research facility near Auburn University, the NCAT Pavement Test Track, that is used to test experimental asphalt pavements for durability.
In addition to repair costs, the condition of a road surface has economic effects for road users. Rolling resistance increases on rough pavement, as does wear and tear of vehicle components. It has been estimated that poor road surfaces cost the average US driver $324 per year in vehicle repairs, or a total of $67 billion. Also, it has been estimated that small improvements in road surface conditions can decrease fuel consumption between 1.8 and 4.7%.
